Power Transformer Testing Equipment & Test Sets

A power transformer testing tool is specialized electrical diagnostic equipment used to evaluate the condition, performance, and reliability of power transformers, CTs, PTs, and substations. These testing systems help identify winding faults, insulation degradation, ratio errors, magnetic core problems, and mechanical deformation before transformer failure occurs.

Power transformer testing commonly includes:

• Transformer turns ratio (TTR) testing

• Winding resistance measurement

• Insulation resistance testing

• Excitation current analysis

• Phase angle measurement

• Vector group verification

• Tan delta testing

• Sweep Frequency Response Analysis (SFRA)

• CT/PT testing

• Polarity testing

These diagnostic methods help assess transformer electrical and mechanical condition during commissioning and maintenance.

Transformer turns ratio testing verifies whether the transformer winding ratio matches the nameplate specifications. TTR testing helps identify shorted turns, winding faults, tap changer problems, and incorrect transformer connections.

Modern three-phase TTR testers such as the STRT-100 and TRT-20 support fast testing, vector recognition, phase angle analysis, and automatic error calculation for power and distribution transformers.

Winding resistance testing is used to evaluate transformer winding integrity and electrical continuity. Abnormal resistance values may indicate loose connections, damaged conductors, poor tap changer contacts, or winding deformation.

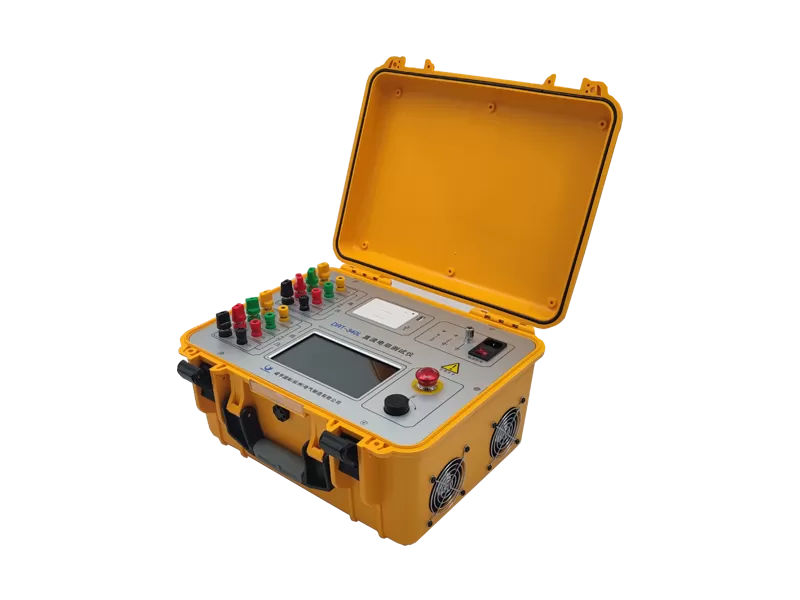

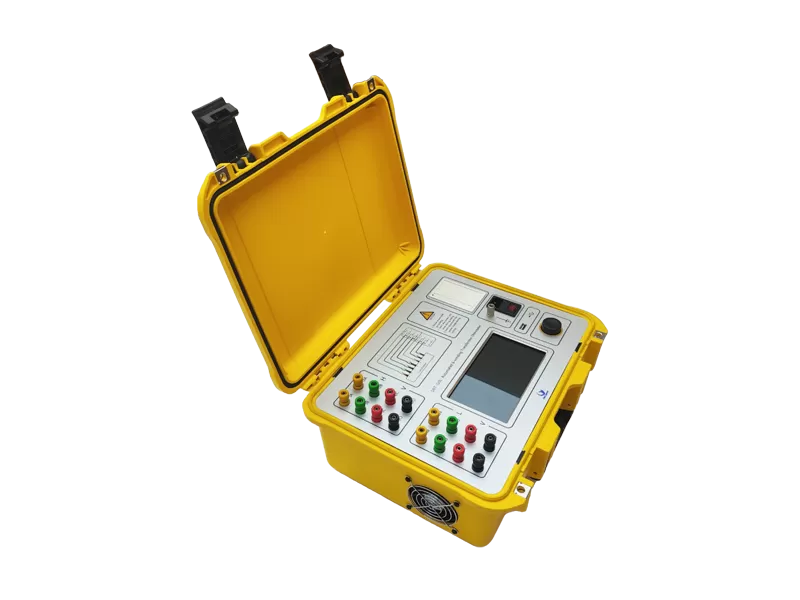

Transformer ohmmeters and winding analyzers help maintenance engineers detect potential failures before transformers are returned to service.

Sweep Frequency Response Analysis (SFRA) is a diagnostic method used to detect mechanical deformation inside transformer windings and cores. SFRA testing can identify movement caused by transportation, short circuits, mechanical stress, or fault currents.

SFRA analyzers such as the Mini-WDT comply with IEC 60076-18 standards and are widely used for transformer condition assessment in substations and power utilities.

Transformer winding deformation can be caused by:

• Short-circuit currents

• Transportation vibration

• Mechanical impact

• Thermal stress

• Aging

• Fault currents

If not detected early, winding deformation may reduce transformer reliability and lead to insulation failure or catastrophic transformer damage.

Excitation current testing measures the magnetizing current required to energize the transformer core. Abnormal excitation current results may indicate core damage, winding faults, insulation deterioration, or magnetic imbalance.

Advanced transformer analyzers can combine excitation current testing with ratio measurement and winding diagnostics to improve testing efficiency.

Tan delta testing, also called dissipation factor testing, evaluates transformer insulation quality by measuring dielectric losses under AC voltage. High tan delta values may indicate insulation aging, moisture contamination, or internal deterioration.

Tan delta test systems are commonly used for transformers, bushings, CTs, PTs, and high-voltage insulation diagnostics.

Yes. Winding resistance analysis and ratio testing can help identify tap changer contact issues, unstable resistance values, contact wear, and switching abnormalities. Early tap changer diagnostics help prevent transformer failures and improve operational reliability.

Yes. We support OEM, ODM, and customized transformer testing solutions for substations, utilities, industrial maintenance companies, and electrical engineering projects. Customized configurations are available based on voltage level, testing requirements, and industry applications.
