Insulation Tester

An insulation testing tool is an electrical diagnostic instrument used to evaluate the insulation condition of cables, transformers, motors, switchgear, GIS, and other high-voltage equipment. These tools help detect insulation deterioration, leakage current, moisture contamination, and potential electrical failures before they lead to equipment breakdown or safety incidents.

Insulation testing is critical for ensuring the safety, reliability, and operational stability of high-voltage electrical systems. Poor insulation can lead to electrical leakage, flashover, partial discharge, equipment damage, and unexpected downtime. Regular insulation testing helps utilities and industrial facilities prevent costly failures and extend equipment service life.

Insulation resistance testers are commonly used for testing transformers, power cables, motors, generators, switchgear, circuit breakers, GIS systems, bushings, arresters, and substations. High-voltage insulation testers are widely applied in power generation, transmission, industrial plants, and electrical maintenance services.

Insulation resistance testing measures the resistance of insulation materials to determine their condition and leakage characteristics. Withstand voltage testing, also called hipot testing, applies high AC or DC voltage to verify whether insulation can safely withstand operating stress without breakdown.

Insulation resistance tests are typically used for condition assessment, while withstand voltage tests are used for insulation strength verification and commissioning.

PI (Polarization Index) and DAR (Dielectric Absorption Ratio) are important insulation diagnostic methods used to evaluate insulation aging and moisture contamination.

• PI compares insulation resistance over time to assess insulation quality.

• DAR measures insulation absorption characteristics during a shorter test interval.

These tests are widely used for transformers, motors, generators, and power cables to determine insulation health and maintenance requirements.

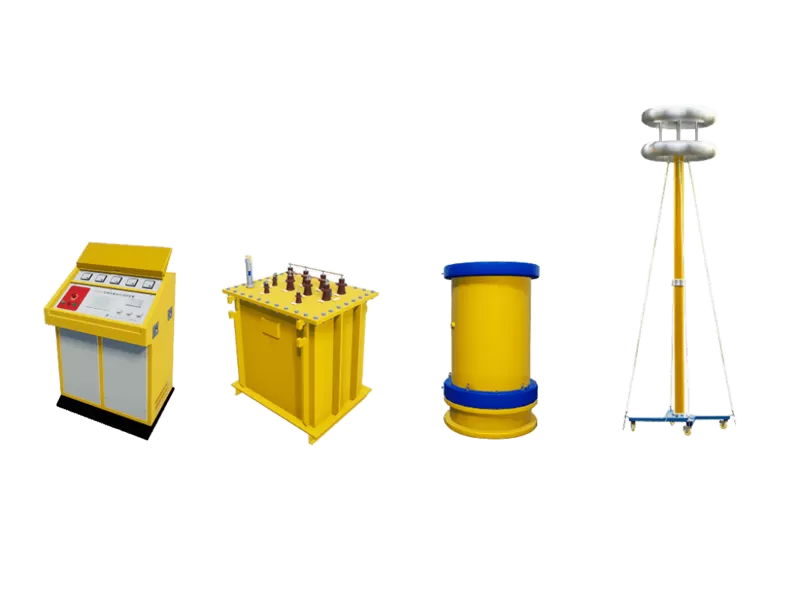

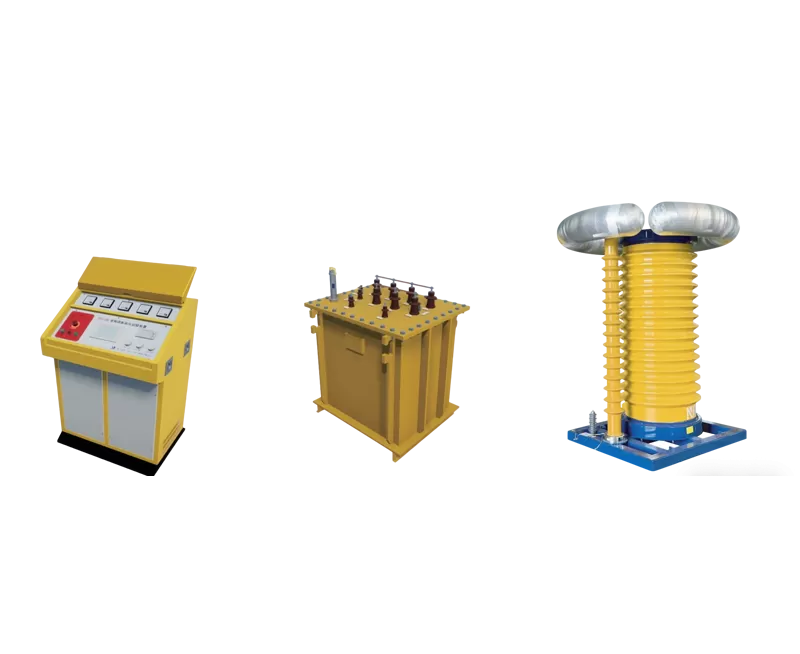

Compared with conventional power-frequency test transformers, resonant test systems offer several advantages:

• Lower input power requirements

• Reduced equipment size and weight

• Better energy efficiency

• Pure sine wave output

• Higher adaptability for capacitive loads such as long cables and GIS

Frequency conversion resonant systems also reduce transportation difficulty and improve on-site testing efficiency for high-voltage applications

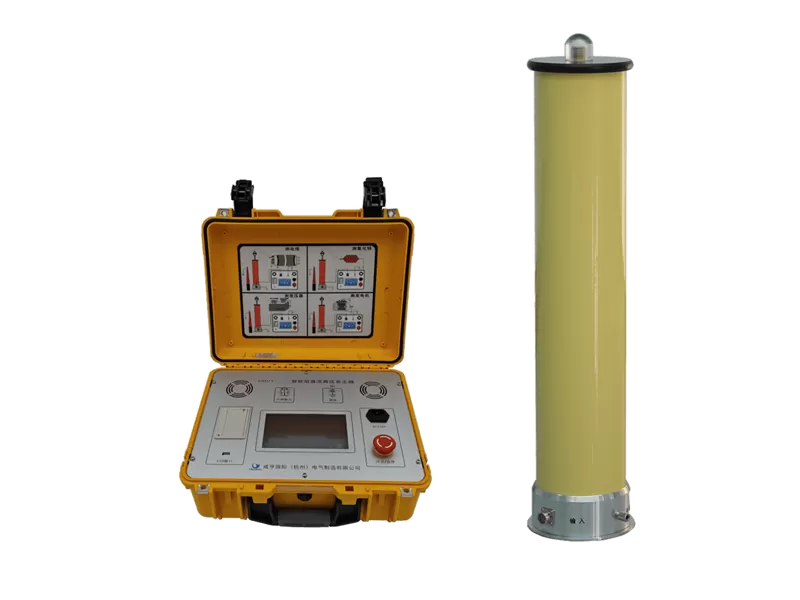

AC hipot testing simulates real operating voltage conditions and is commonly used for testing cables, transformers, GIS, and rotating equipment. DC hipot testing is often used for field testing and maintenance because the equipment is more portable and requires lower power capacity.

AC withstand testing generally provides more realistic insulation stress evaluation for AC power systems, while DC high pot testing is widely used for cable commissioning and maintenance applications.

The appropriate insulation tester depends on the operating voltage and application scenario.

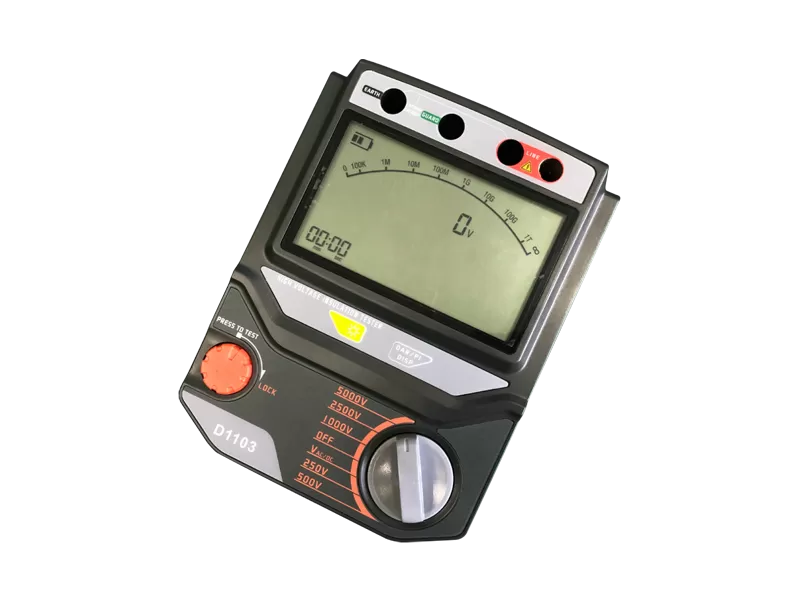

• 5kV insulation testers are commonly used for motors, low- and medium-voltage equipment, and routine maintenance.

• 10kV–15kV insulation testers are preferred for substations, transformers, long-distance cables, and high-voltage equipment.

• Resonant and high-pot systems are required for withstand voltage testing in extra-high-voltage applications.

Selecting the correct test voltage is important to ensure accurate insulation evaluation without damaging equipment.

Yes. Advanced insulation testing equipment can help identify insulation degradation, contamination, moisture ingress, leakage current abnormalities, and dielectric deterioration. Functions such as PI, DAR, dielectric loss testing, and leakage current monitoring provide deeper analysis of insulation condition and remaining service life.
