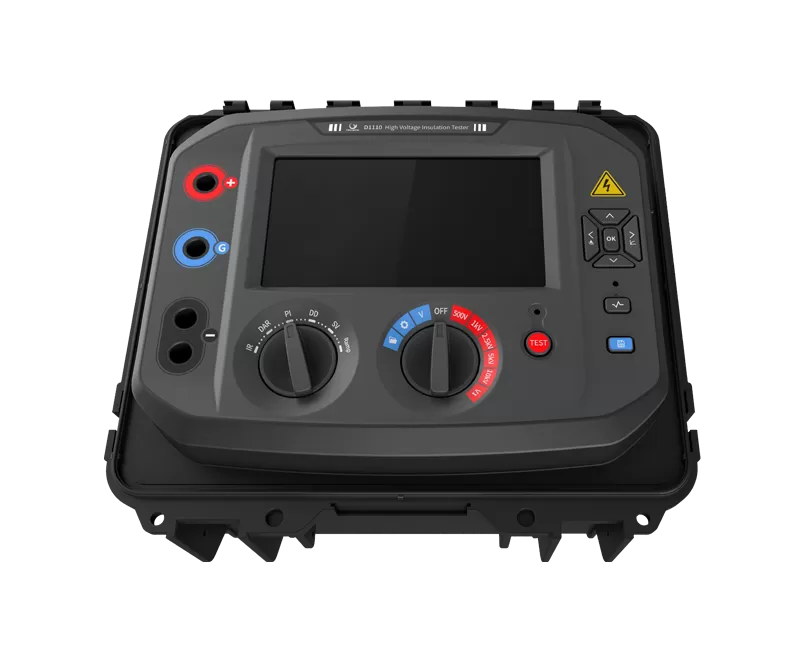

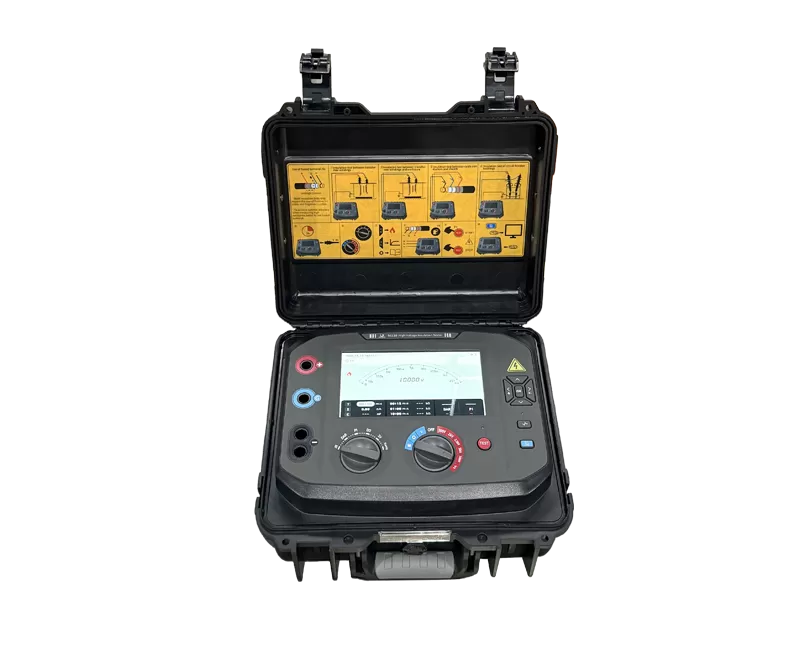

Elecgene's new D11-Series of insulation resistance testers consist of a 10kV and 15kV models called D1110 and D1115. These testers have charging current, noise rejection and software filtering features to make them more powerful.
Suitable for electric power companies and enterprise power department to conduct insulation test on primary equipment such as transformers, breakers, cables and so on, which is a necessary insulation tester for high voltage tests.

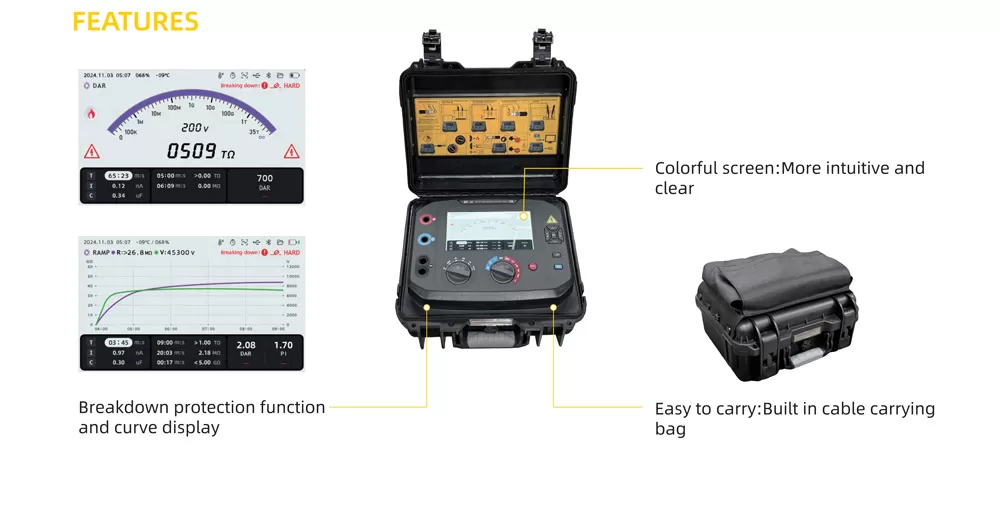

Noise rejection function
Operates from battery or AC mains supply

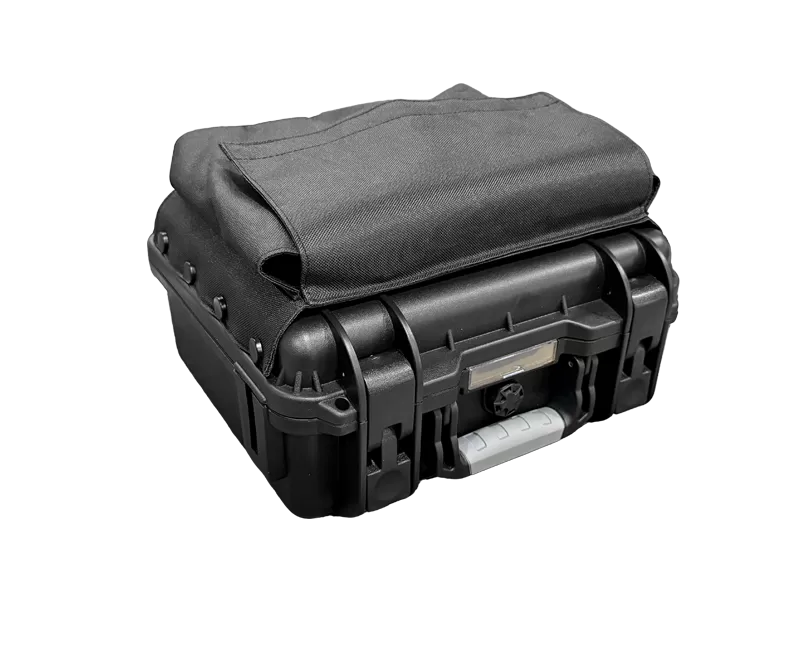

Large color screen display, tough dual case design
Real time display and record changes of insulation resistance, voltage and current
7 channel output voltage(Up to 12000V) IR, IR(t), DAR, PI, SV, DD, Ramp test

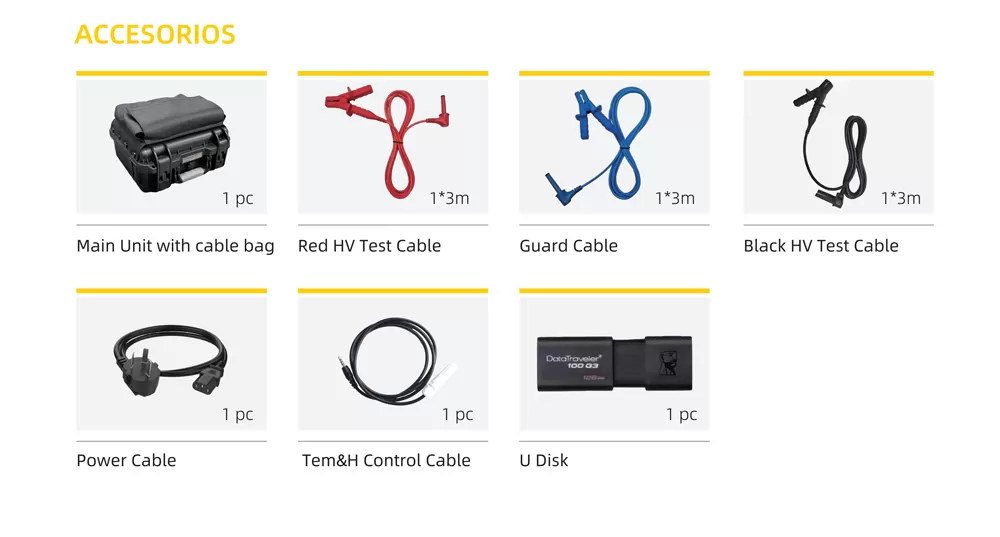

D1115 | D1110 | D1105 | ||
Output voltage | 40 V to 15000 V | 40 V to 12000 V | 40 V to 5000 V | |
Test voltage accuracy | +4%, -0%, ±10 V nominal test voltage at 1 GΩ load (0-30°C) | |||
Test range （User defined test voltage） | 1000 V, 2500 V, 5000 V, 10000 V, 15000 V | 500 V, 1000 V, 2500 V, 5000 V, 10000 V | 250 V, 500 V, 1000 V, 2500 V, 5000 V | |
Lock test voltage | 40 V to 1 kV in 10 V steps; 1 kV to 15 kV in 25 V steps | 40 V to 1 kV in 10 V steps, 1 kV to 5 kV in 25 V steps, 5 kV to 12 kV in 25 V steps | 40 V to 1 kV in 10 V steps, 1 kV to 5 kV in 25 V steps, 5 kV to 12 kV in 25 V steps | |
Resistance range | 10 kΩ to 35 TΩ | 10 kΩ to 35 TΩ | 10 kΩ to 15 TΩ | |
Accuracy | 250 V | / | / | 10 kΩ～50 GΩ, ±5%; 50 GΩ～500 GΩ, ±20% |
500 V | / | 10 kΩ～100 GΩ, ±5%; 100 GΩ～1 TΩ, ±20% | 10 kΩ～100 GΩ, ±5%; 100 GΩ～1 TΩ, ±20% | |
1000 V | 10 kΩ～200 GΩ, ±5% 200 GΩ～2 TΩ, ±20% | 10 kΩ～200 GΩ, ±5%; 200 GΩ～2 TΩ, ±20% | 10 kΩ～200 GΩ, ±5%; 200 GΩ～2 TΩ, ±20% | |
2500 V | 10 kΩ～500 GΩ, ±5% 500 GΩ～5 TΩ, ±20% | 10 kΩ～500 GΩ, ±5%; 500 GΩ～5 TΩ, ±20% | 10 kΩ～500 GΩ, ±5%; 500 GΩ～5 TΩ, ±20% | |
5000 V | 10 kΩ～1 TΩ, ±5% 1 TΩ～10 TΩ, ±20% | 10 kΩ～1 TΩ, ±5%; 1 TΩ～10 TΩ, ±20% | 10 kΩ～1 TΩ, ±5%; 1 TΩ～10 TΩ, ±20% | |
10000 V | 10 kΩ～2 TΩ, ±5% 100 GΩ～20 TΩ, ±20% | 10 kΩ～2 TΩ, ±5%; 2 TΩ～20 TΩ, ±20% | / | |
12000 V | / | 10 kΩ～2 TΩ, ±5%; 2 TΩ～24 TΩ, ±20% | / | |
15000 V | 10 kΩ～3 TΩ, ±5% 3 TΩ～30 TΩ, ±20% | / | / | |
| Resistance resolution | 0.01kΩ |
| Test modes | IR, IR (t), DAR, PI, SV, DD, ramp test, voltage measurement |
| Short circuit current | 1 mA, 2 mA, 3 mA, 4 mA, 5 mA, 6 mA |
| Insulation test alarm | 100 kΩ to 999 GΩ |
| Voltage measurement | AC/DC: 5～660 V (45~65 Hz), ±3% rdg ±3 V, 0.1 Hz |
| Current measurement | 0.01 nA～7.00 mA, ±5% rdg ±0.2 nA |
| Capacitance | 10.0 nF～50.0 μF, ±10% rdg ±5 nF |
| Discharge rate | From 12 kV to 50 V, ≤0.47 s/uF From 5 kV to 50 V, ≤0.25 s/uF |
| Temperature measurement | -20～100 ℃, ±2 ℃ |
| Filtering method | Hardware filtering, software filtering |
| Software filter settings | 10 s, 20 s, 30 s, 60 s & adaptive |
| Timer range | Up to 99 minutes 59 seconds, 1 second minimum setting |
| Real-time output | Voltage, current, resistance |
| Display | 7'', 800×480 industrial LED color display |
| Memory capacity | 100 hrs logging @ 1 sec intervals |
| Data export | Export results and process data via USB |
| Communication interface | USB, bluetooth |
| Power supply | 80～264 VAC, 47-63 Hz |
| Battery capacity | 6200 mAh, 14.4 V |
| Battery life [(typical) continuous testing] with a 100 MΩ load | 6 hrsat 10 kV (D1115+D1110) 7 hrs at 5 kV (D1105) |
| Battery charge time | 3 hrs normal charging (220 V/50 Hz) |
| Operating temperature | -20～50 °C |
| Storage temperature | -25～65 °C |
| Humidity | ＜95% RH, non-condensing |
| Ip rating | IP65 (lid closed), IP40 (lid open) |
| Safety | CATIV 600 V to 3000 m |
| Net size | 318×280×150 mm |
| Net weight | 4.3 kg |
Commissioning and maintenance of distributed and generator power substation cables
Switch gear
Arresters
Motors and generators
Transformers
