110kV Circuit Breakers Timing And Motion Tests Case

Sheet1 Basic Information

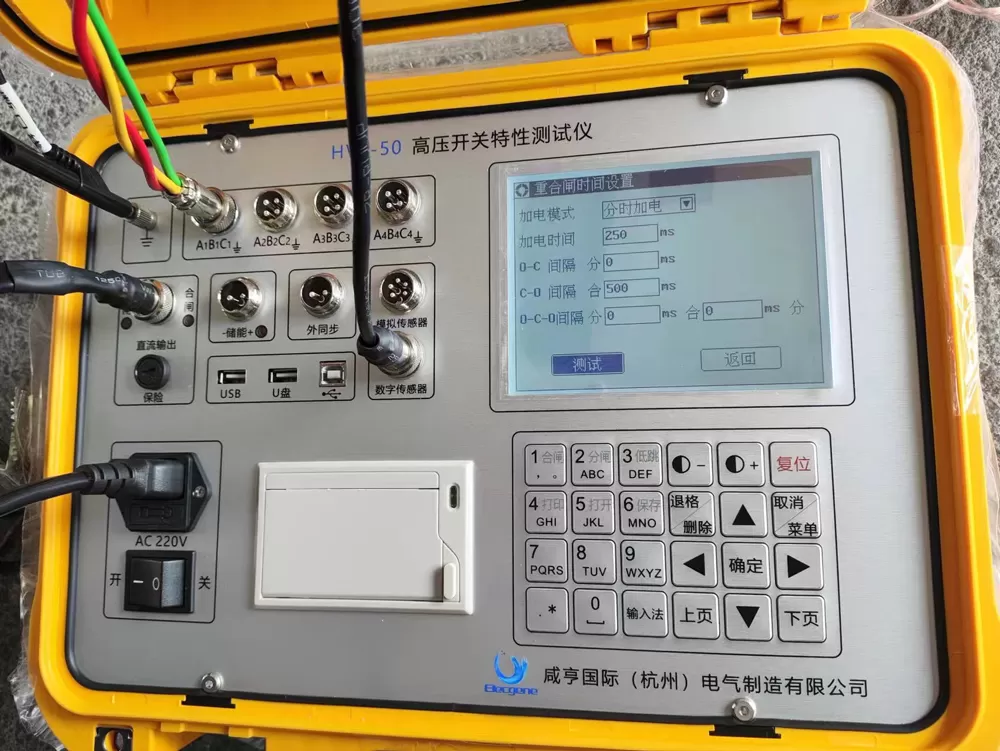

Figure 1  HVS-50 Circuit Breaker Analyzer

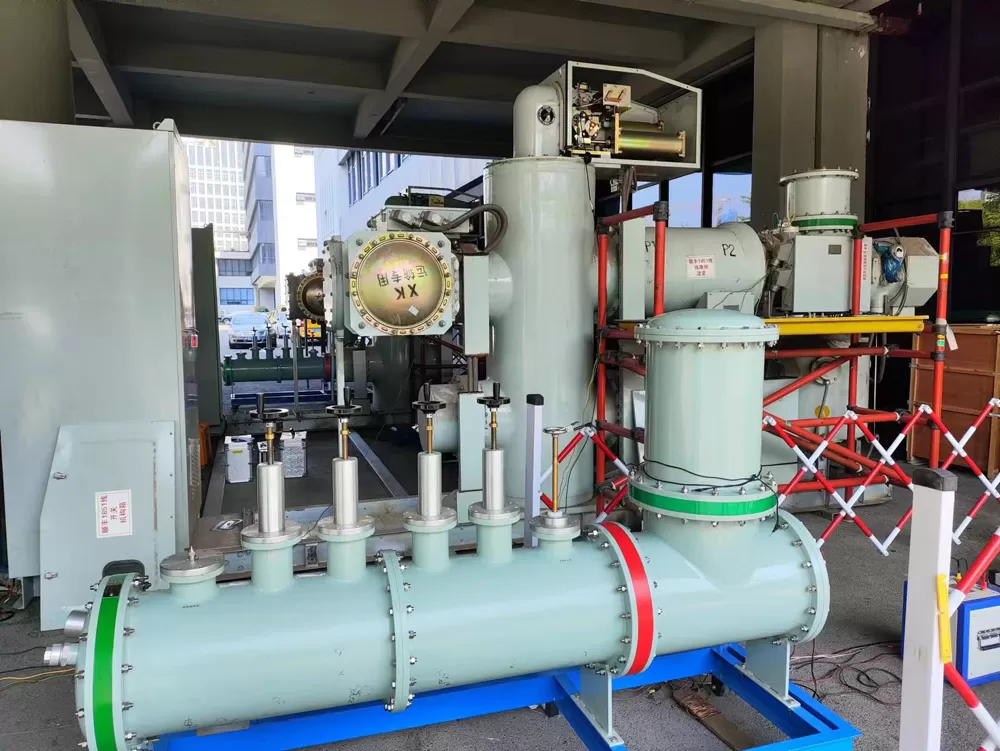

Figure 2. Overall GIS

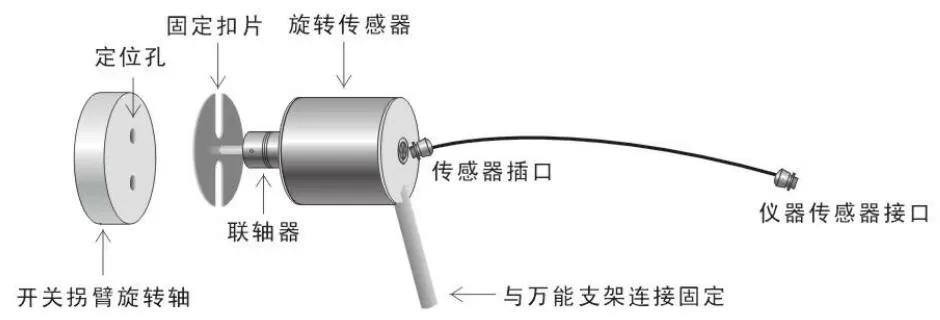

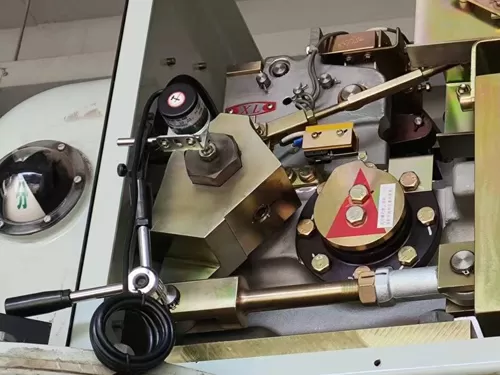

Connect the instrument and circuit breaker to the control circuit, break and rotating shaft in accordance with the way shown inFigure 2, Figure 3 and Figure 4 above. After setting according to the circuit breaker parameters, test is carried out.

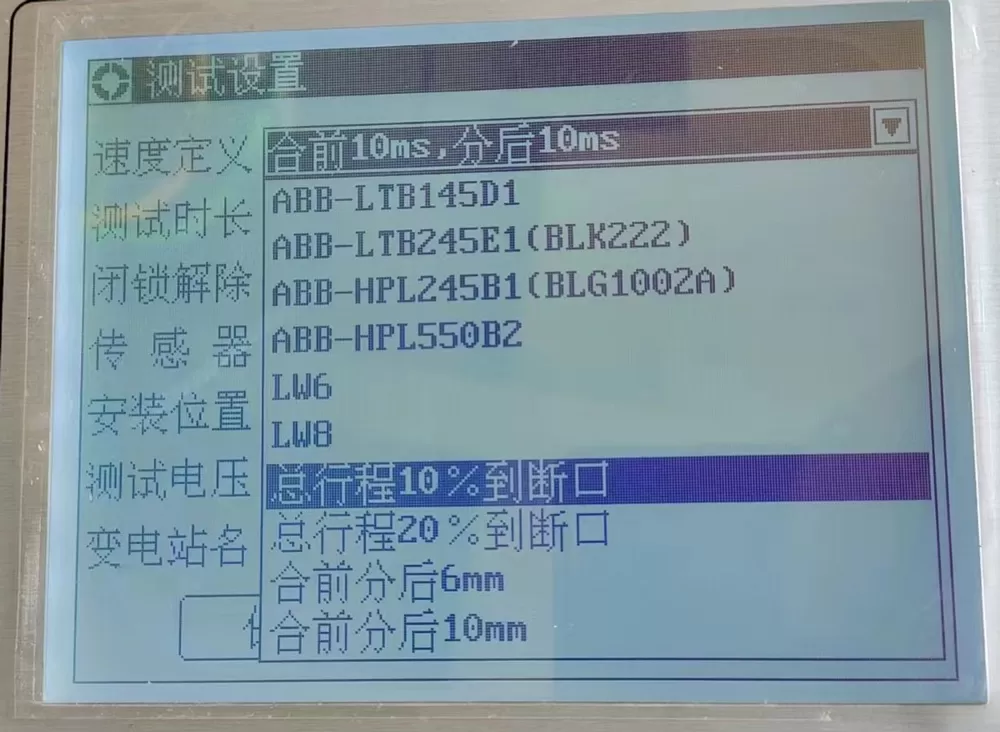

Figure 3 Speed definition

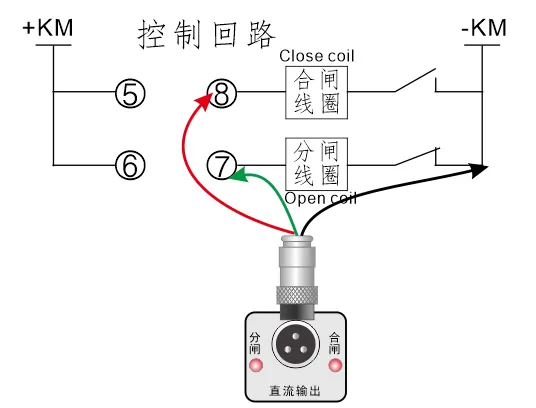

Figure 4 Connect open/close coil

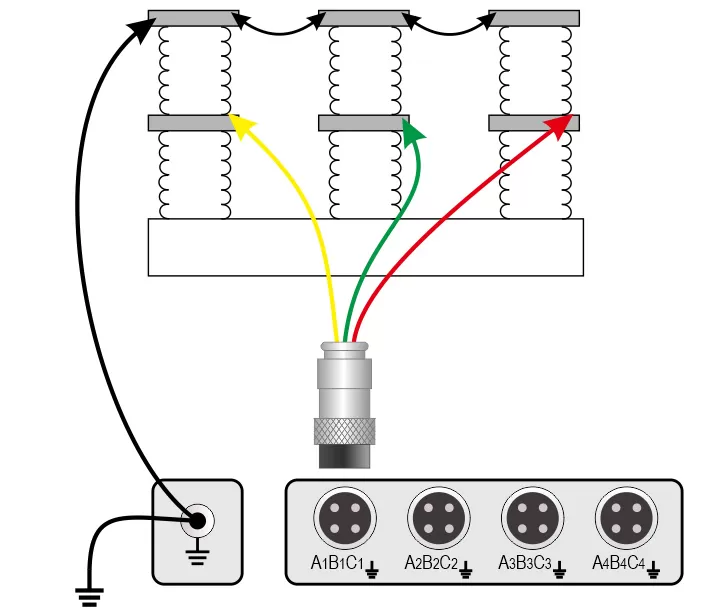

Figure 5. Connect The Breaker

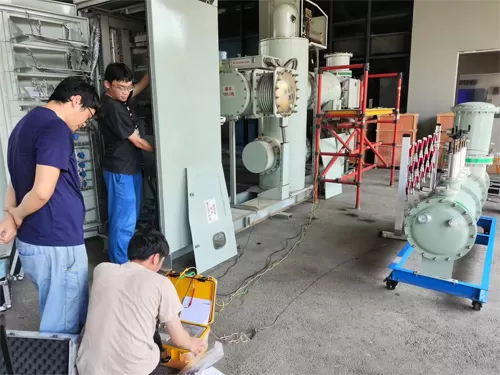

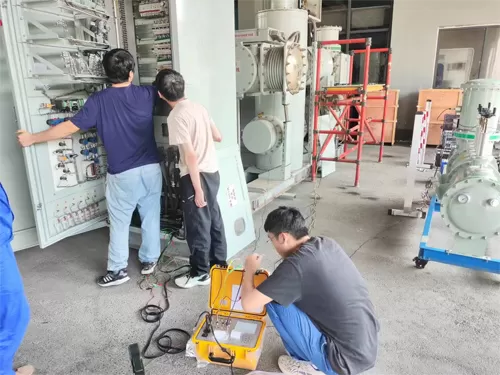

Figure 7 On-site Display

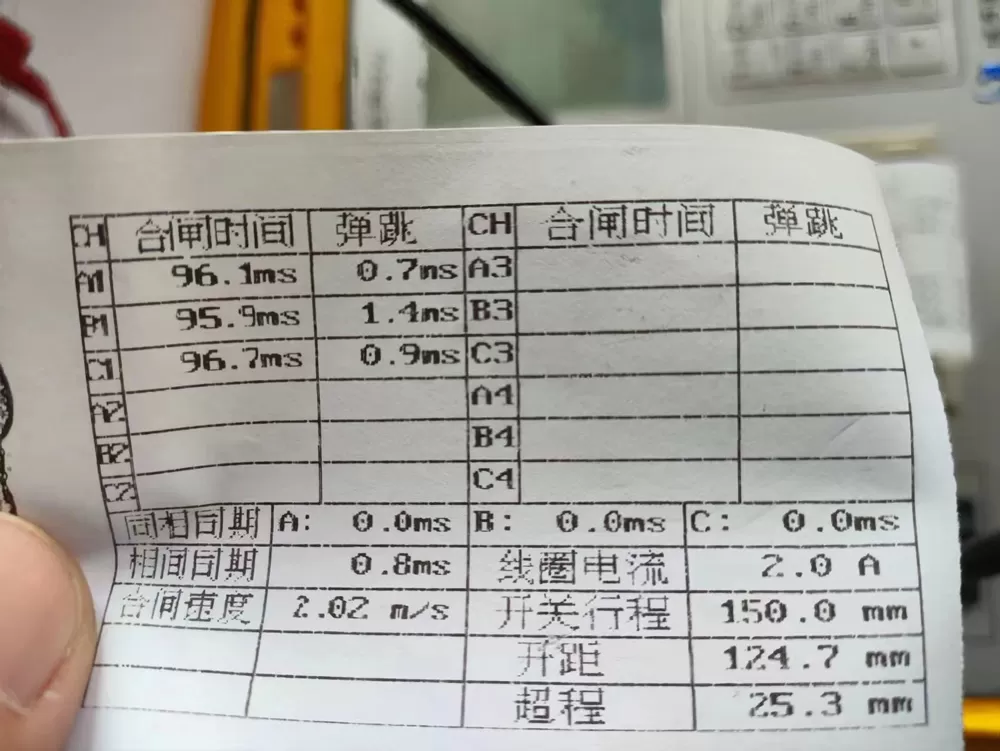

Figure 8 Timing And Motion Test Result Of  Closing

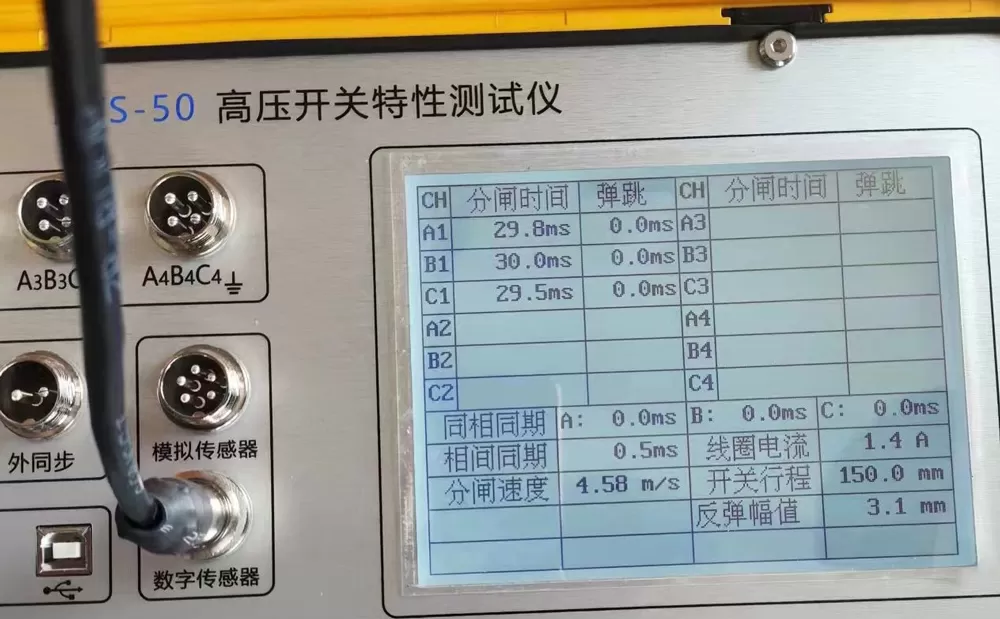

Figure 9  Timing And Motion Test Result Of  Opening

The primary purpose of circuit breaker mechanical characteristic testing is to evaluate the performance and operational status of the equipment, ensuring safe and reliable operation. These tests involve detailed measurement and analysis of critical parameters such as opening/closing time, speed, and travel distance. The aim is to identify potential issues, extend equipment lifespan, and enhance the stability and safety of power systems.

Through the comparison of test results and circuit breaker parameters, it can be concluded that all the circuit breaker results are qualified.
