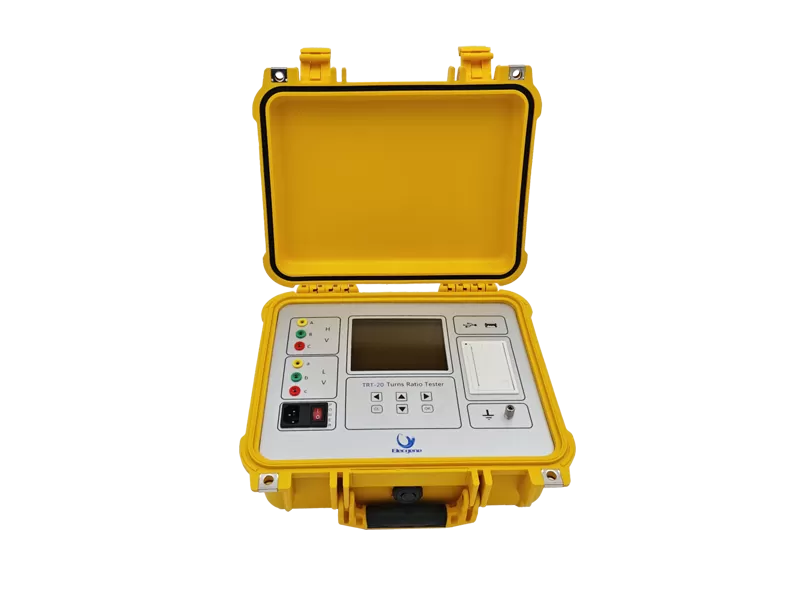

Decoding Transformer Diagnostics: The Science Hidden Behind the TTR Tester

In the field of power maintenance, transformer turns ratio testing is often considered a routine procedure. However, at Elecgene, we believe that true reliability lies in understanding the "unknown truths" beneath the surface of measurements.

Precision Dynamics in Elecgene TTR Tester: Voltage and Excitation

The accuracy of TTR testing is largely influenced by the way test voltage is applied. While many standard devices use low voltage excitation, the Elecgene TTR Tester optimizes the balance between step-up and step-down excitation methods. Step-down excitation is generally safer and prevents core saturation that leads to ratio errors. Our tester ensures that the applied voltage is sufficient to overcome the effects of magnetization current, without compromising the insulation integrity of the transformer being tested.

How the Elecgene TTR Tester Handles Vector Groups

One of the most complex aspects of testing is the difference between nameplate ratio, voltage ratio, and true turns ratio. The Elecgene TTR Tester simplifies this complexity through the following key technical features:

• Automatic Vector Compensation: Vector configurations introduce phase shifts. Our device automatically adjusts for these shifts to prevent erroneous readings.

• Error Isolation: By analyzing phase angle errors separately from ratio errors, users can determine whether issues originate from the magnetic circuit or winding geometry.

Real-World Challenges: OLTC and the Advantages of the Elecgene TTR Tester

On-load tap changers often face the greatest challenges, especially when extreme tap ratios fall outside tolerance ranges. These deviations are usually caused by contact resistance or mechanical misalignment. Conducting a true three-phase test with the Elecgene TTR Tester (rather than a sequential single-phase test) allows for a more accurate assessment of the magnetic circuit. The correlation of TTR results with other electrical tests, such as DC winding resistance testing, helps technicians precisely locate whether faults lie in the windings or the tap changer mechanism.

Maximizing Equipment Health through Connectivity with the Elecgene TTR Tester

Modern diagnostics require more than isolated data points. The Elecgene TTR Tester is designed to integrate its findings with a broader testing suite. By analyzing the sources of phase angle errors, our tool provides a holistic view of transformer health. Choosing Elecgene means you are not just purchasing a tool; you are investing in a deeper understanding of your power infrastructure.
