Separate control and HV units
Continuously adjustable voltage
DC testing via a rectifier
In-built over-current protection
The AC voltage insulation tester is suitable for kinds of electrical products, electrical equipments and insulated materials, testing the insulated level of products, discovering the insulated situation of tested objects.
These units can also be upgraded to function as DC insultation test sets by mounting the rectifier attachment on top of the transformer(optional).
Testing switchgears
Testing voltage and current transformers
Testing MV plants/components

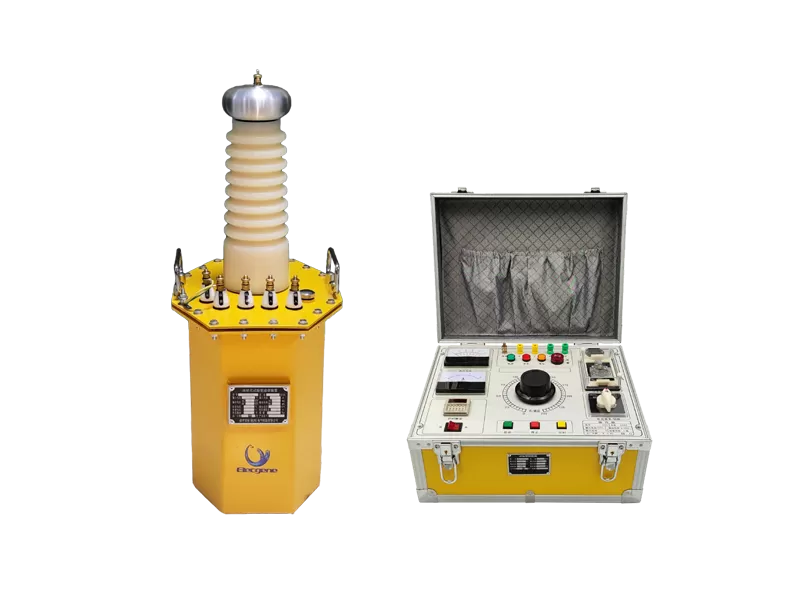

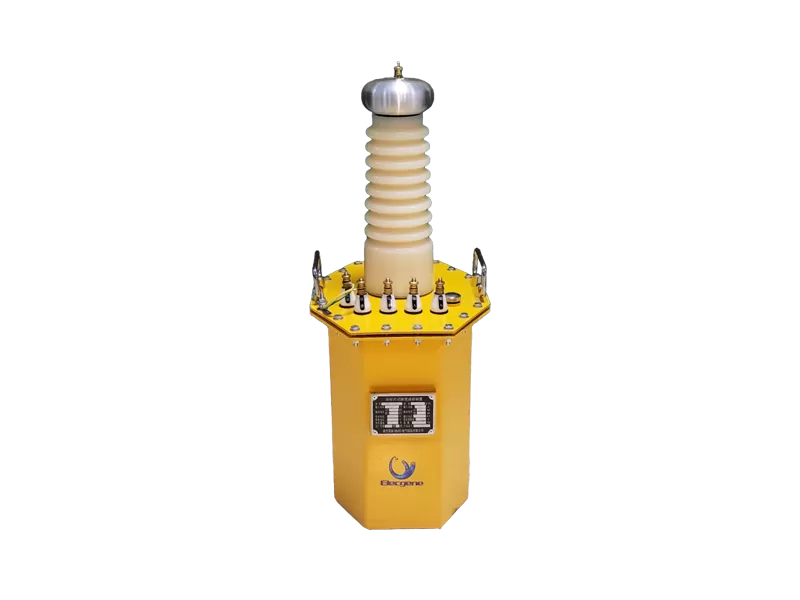

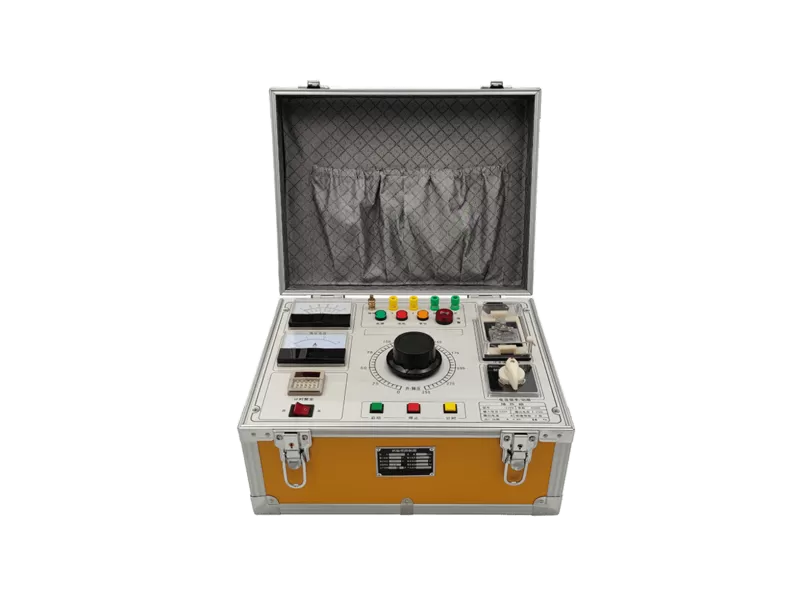

The two piece design allows the operator to use the unit at a safe distance. The control unit is used to operate the high voltage transformer. The unit consists of a variac, current/ voltage display instruments, a timer for the test duration and a safety circuit.
| YTB-20(3/50) | YTB-20(5/50) | YTB-20(10/50) | |
| Rated capacity | 3kVA | 5kVA | 10kVA |
| Input voltage | 200~240VAC,50/60Hz | 200~240VAC,50/60Hz | 200~240VAC,50/60Hz |
| Outputhigh voltage | 0~50kV AC | 0~50kV AC | 0~50kV AC |
| 0~70kV DC(optional) | 0~70kV DC(optional) | 0~70kV DC(optional) | |
| Outputcurrent | 0~60mA AC | 0~100mA AC | 0~200mA AC |
| 0~20mA DC(optional) | 0~35mA DC(optional) | 0~70mADC(optional) | |
| Ratio | 500 | 500 | 500 |
| Insulation material | Insulating oil | Insulating oil | Insulating oil |
| Duty cycle | 5min ON/15min OFF at 3 kVA | 5min ON/15min OFF at 5kVA | 5min ON/15 min OFF at 10kVA |
| Control unit | |||
| Net weight | 19kg | 21kg | 37kg |
| Net size | 440*340*230mm | 440*340*230mm | 440*340*380mm |
| Transformer | |||
| Ne weight | 37kg | 42kg | 67kg |
| Net size | 305*245*630mm | 325*255*640mm | 375*275*720mm |
