Products

• Noise rejection function

• Operates from battery or AC mains supply

• Large color screen display, tough dual case design

• Real time display and record changes of insulation resistance, voltage and current

• 7 channel output voltage(Up to 12000V) IR, IR(t), DAR, PI, SV, DD, Ramp test

• Timing and travel analyzer

• Coil and motor supply of 2.4 kW

• So many kinds of CB models inside the software

• One step connect, nearly all test results can be get

• Rotary, Linear and Universal transducer are all standard configuration

• Easy-to-read display

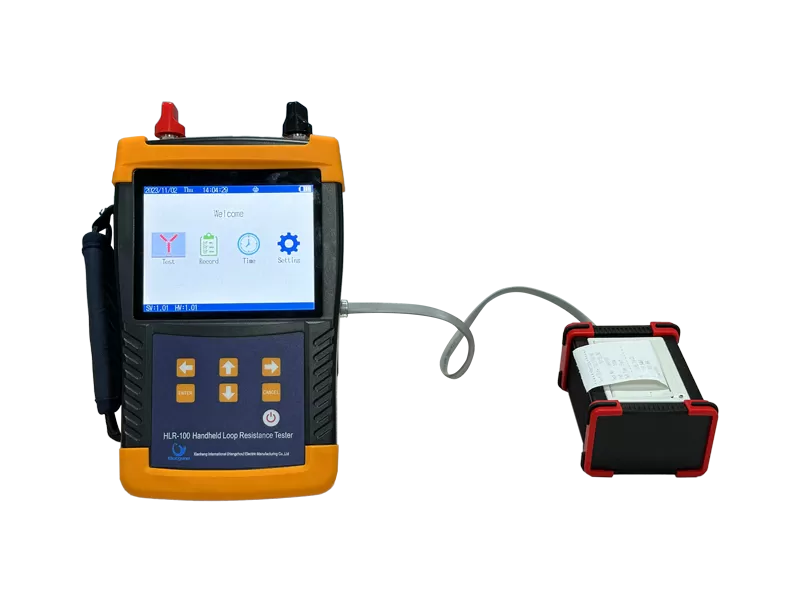

• High current and accuracy

• Light weight,easy to carry out

• Easy to get paper results on field

• 30A-100A current output for different use

• Meet IEC 60076-18 standard

• Portable and light-weight for easy use

• Analysis software allows further diagnostics

• Reproducible results thanks to innovative connection technique

• Built-in printer

• Built-in auto-demagnetization

• DC test current up to 20A(DRT-320L)、40A(DRT-340L)

• One-time connection principle results in faster setup time eliminating safety risk

• Automated eight-terminal/six-winding measurement capability

• Simultaneous winding magnetization for fast and accurate dc winding resistance measurements of high inductive loads

• DC test current up to 10A

• 5.6-inch color LED screen

• Built-in battery(Optional)

• Wide measurement range (500uΩ ~ 50kΩ) and high accuracy

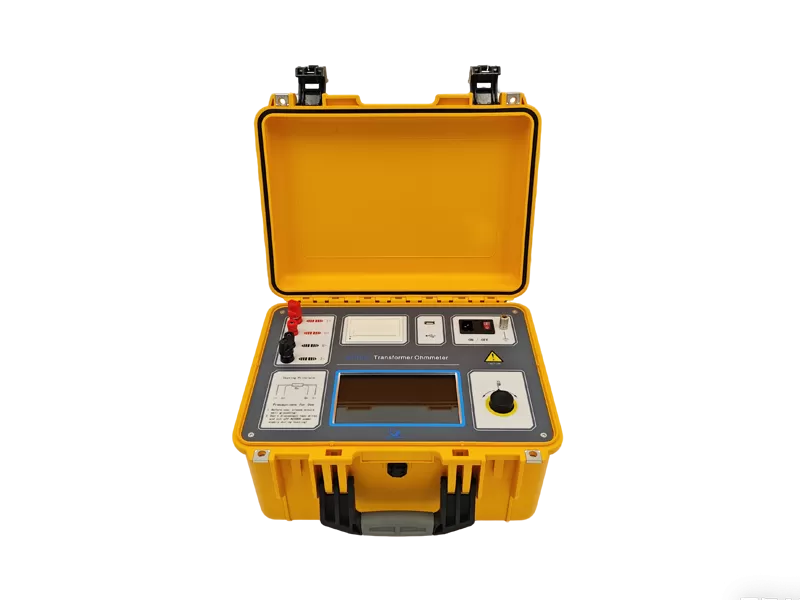

• DC test current up to 20A, 40A, and 50A for different models

• 7-inch full-color touch display for easy operation and viewing

• Auto resistance-rate calculation at 5s, 15s, and 30s intervals

• Ground-wire disconnection alarm function (DCR40/DCR50 only)

The AC voltage test sets are suitable for kinds of electrical products, electrical equipments and insulated materials, testing the insulated level of products, discovering the insulated situation of tested objects.

• Separate control and HV units

• Continuously adjustable voltage

• DC testing via a rectifier

• In-built over-current protection

Through the reactor of the combined device, it can output stable AC high voltage, which is mostly used for AC voltage withstand test of on-site electrical equipment, such as cross-linked cables, transformers, GIS, motors and generators.

• Lower input power requirement

• Pure AC Sine Wave at output

• Easy to combine reactor to output different voltage.

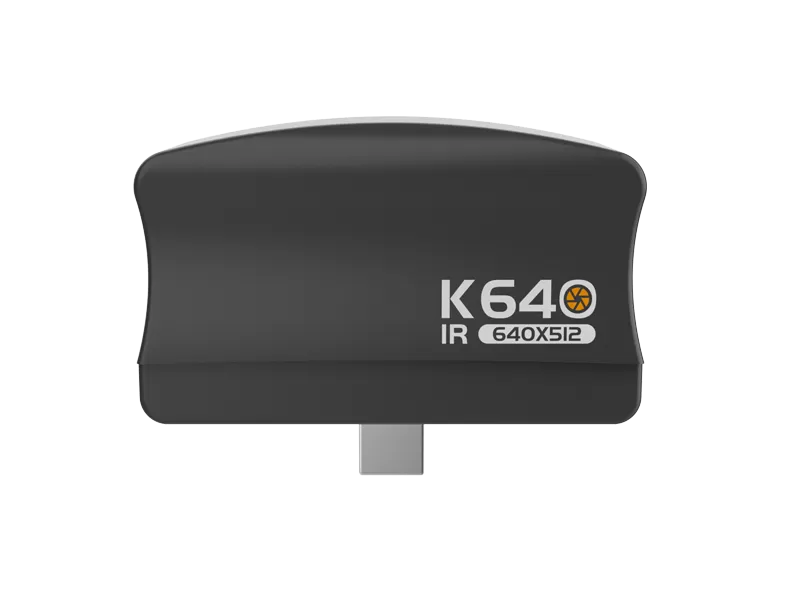

• IR resolution 640*512

• Type-C port, quick adaptation

• Different color palettes & image modes

• Battery-free，little power less than 0.53W
