Separate control and HV units
Continuously adjustable voltage
DC testing via a rectifier
In-built over-current protection

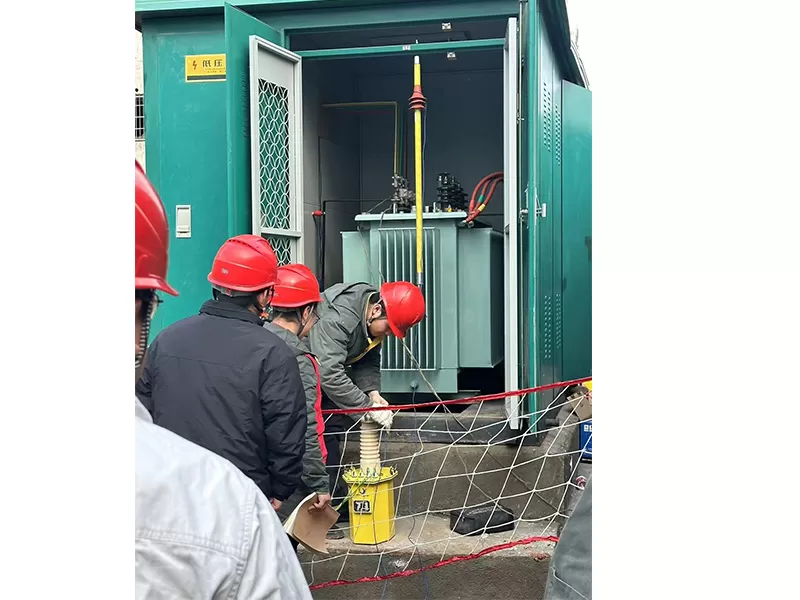

Testing switchgears

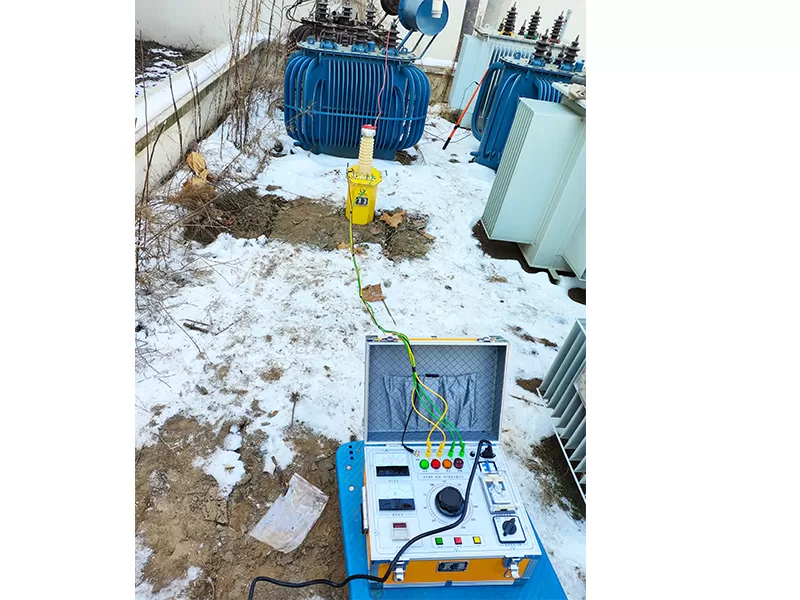

Testing voltage and current transformers
Testing voltage and current transformers

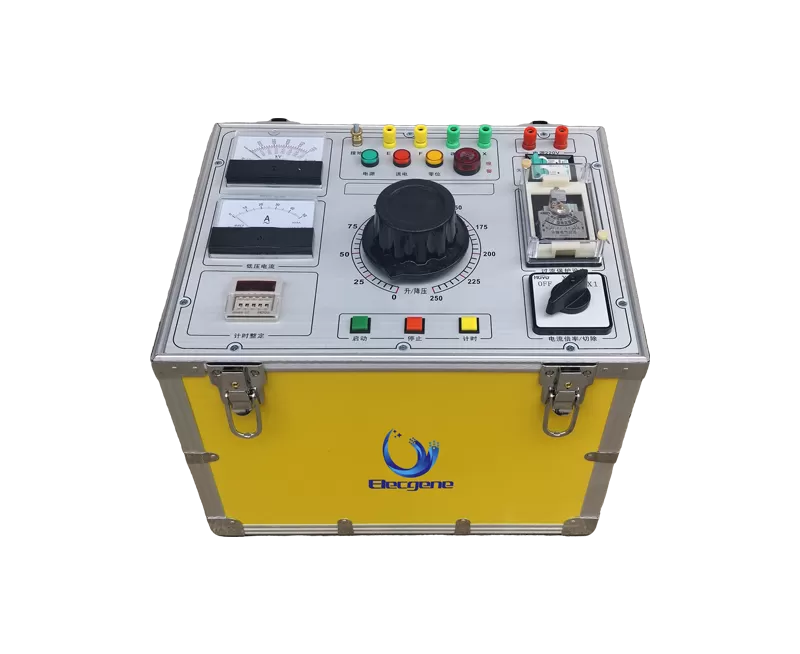

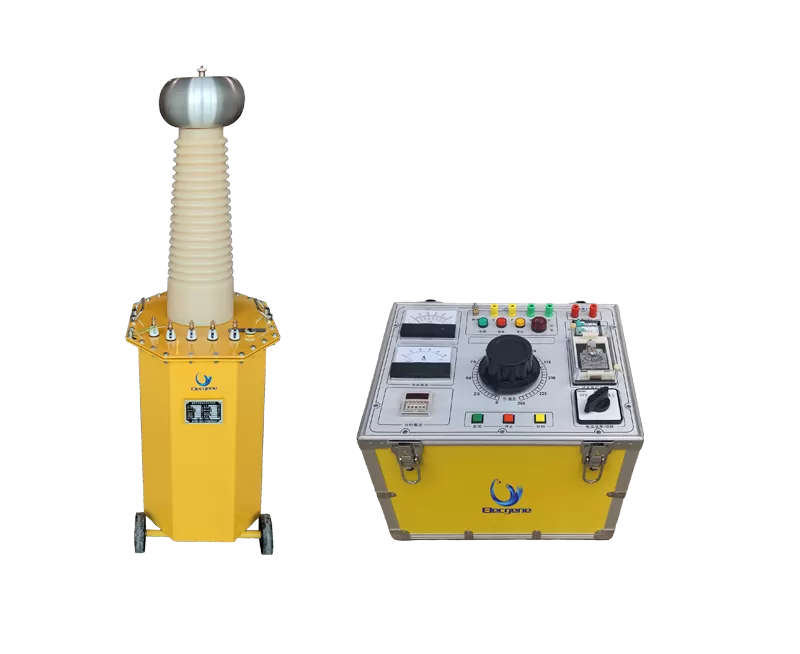

The two piece design allows the operator to use the unit at a safe distance. The control unit is used to operate the high voltage transformer. The unit consists of a variac, current/ voltage display instruments, a timer for the test duration and a safety circuit.
| YTB-20(5/100) | YTB-20(10/100) | |
| Rated capacity | 5kVA | 10kVA |
| Input voltage | 200~240VAC,50/60Hz | 200~240VAC,50/60Hz |
| Output high voltage | 0~100kV AC 0~140kV DC(optional) | 0~100kV AC 0~140kV DC(optional) |
| Output current | 0~50mA AC 0~15mA DC(optional) | 0~100mA AC 0~35mA DC(optional) |
| Ratio | 1000 | 1000 |
| Insulation material | Insulating oil | Insulating oil |
| Duty cycle | 5 min ON / 15 min OFF at 5 kVA | 5 min ON / 15 min OFF at 10 kVA |
| Control unit | ||
| Net weight | 21kg | 37kg |
| Net size | 440*340*230mm | 440*340*380mm |

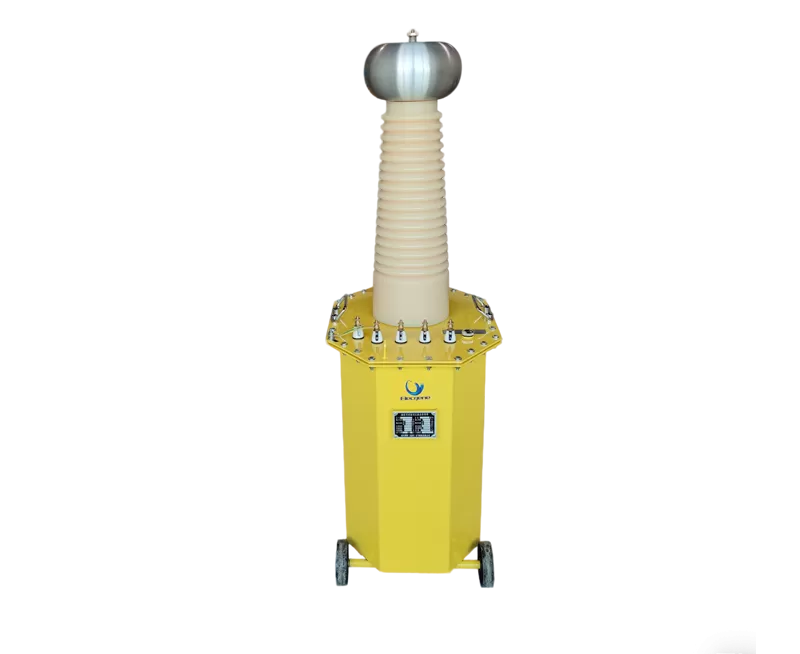

| Transformer | ||
| Net weight | 100kg | 115kg |
| Net size | 465*350*1100mm | 495*350*1120mm |
