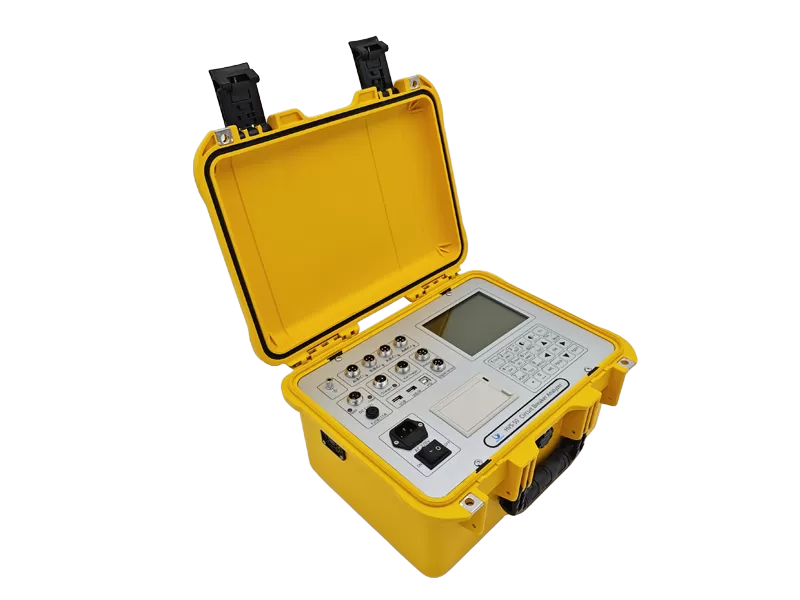

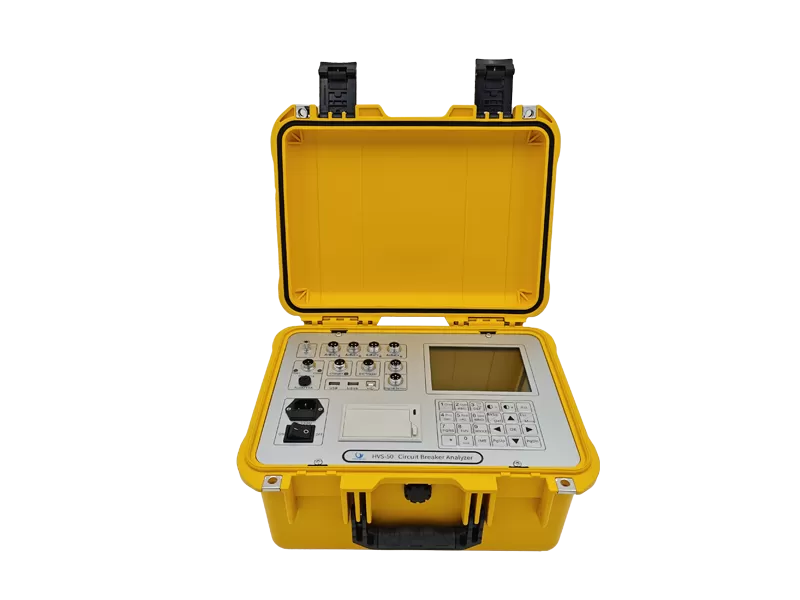

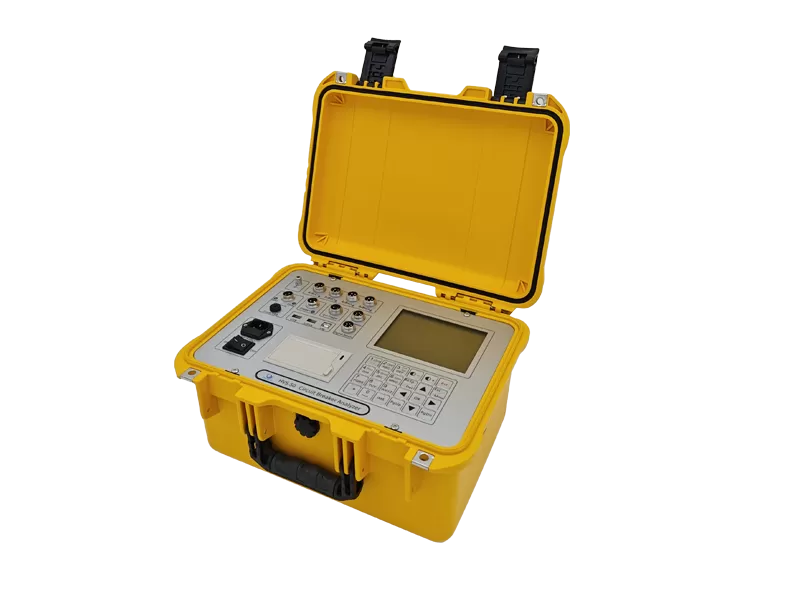

Timing and travel analyzer
Coil and motor supply of 2.4 kW

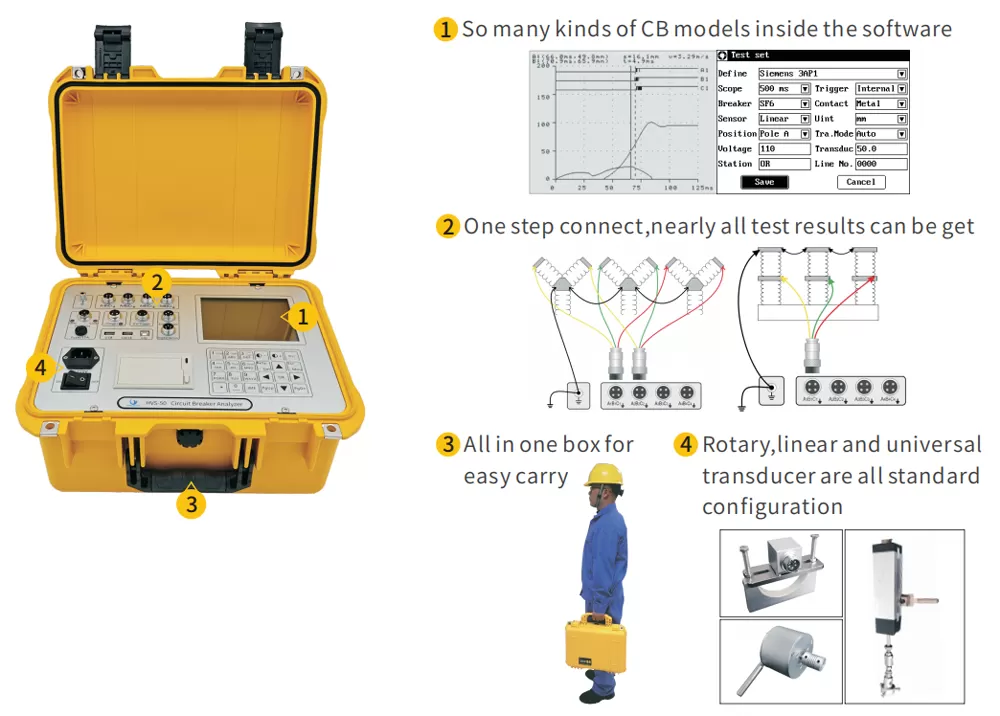

So many kinds of CB models inside the software
One step connect, nearly all test results can be get
Rotary, Linear and Universal transducer are all standard configuration

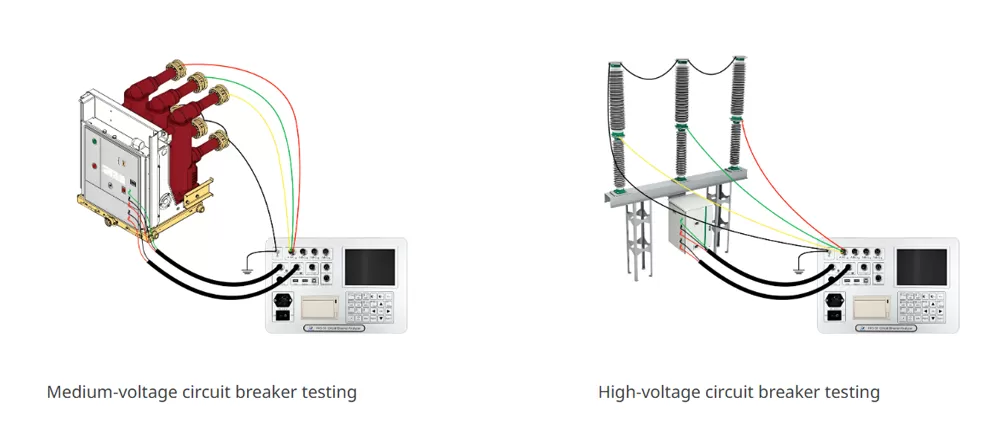

Easy to carry out complete tests on medium and high voltage circuit breakers. Analysis can be performed quickly, easily, automatically with only once connect to circuit breakers.
Coil current analysis of close and open coils
Timing measurements
Motion and travel measurements
Vibration measurements
Minimum pickup voltage test for close and open
| Time Fracture | 12 metal contacts, 25V, curent limit 50mA | |
| Motion Sensor | Rotary, Linear and Universal transducer | |
| Safety Performance | Insulation resistance: > 2M2, Leakage current: <3.5mA Dielectric strength: AC 1500V | |
| Time Test | Range | 0-16s |
| Accuracy | 土(0.001%012 words) | |
| Resolution | 0.1ms | |
| Travel Test | Range | 0-800mm |
| Accuracy | 0.5%±0.1mm | |
| Resolution | 0.1mm | |
| Speed Test | Range | 0.01-20.00m/s |
| Accuracy | 1% | |
| Resolution | 0.01m/s | |
| DC Power Supply | Adjustment range | 0-270V |
| Max instantaneous current | 20A | |
| Accuracy | 土(0.01+1 word) | |
| Lcad change rate | s0.01 | |
| Store and Print | Built-in high-speed thermal printing, fast and silent, data can be stored in real time | |
| Input Power | 200~240VAC,50/60 Hz | |
| Environmental Conditions | Operating temperature : -10℃~50℃ Humidity :≤90% | |
| Net Size | 380×280×200mm | |
| Net Weight | 7kg(without measuring cables) | |
