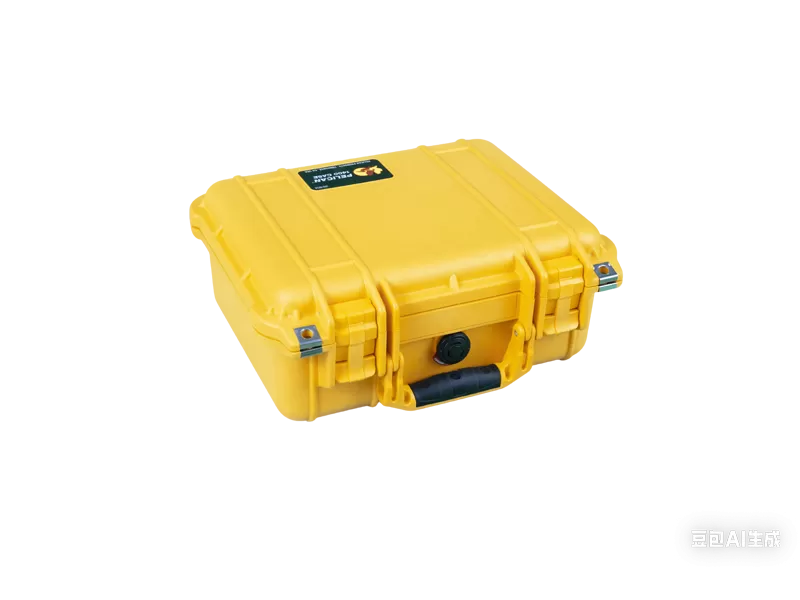

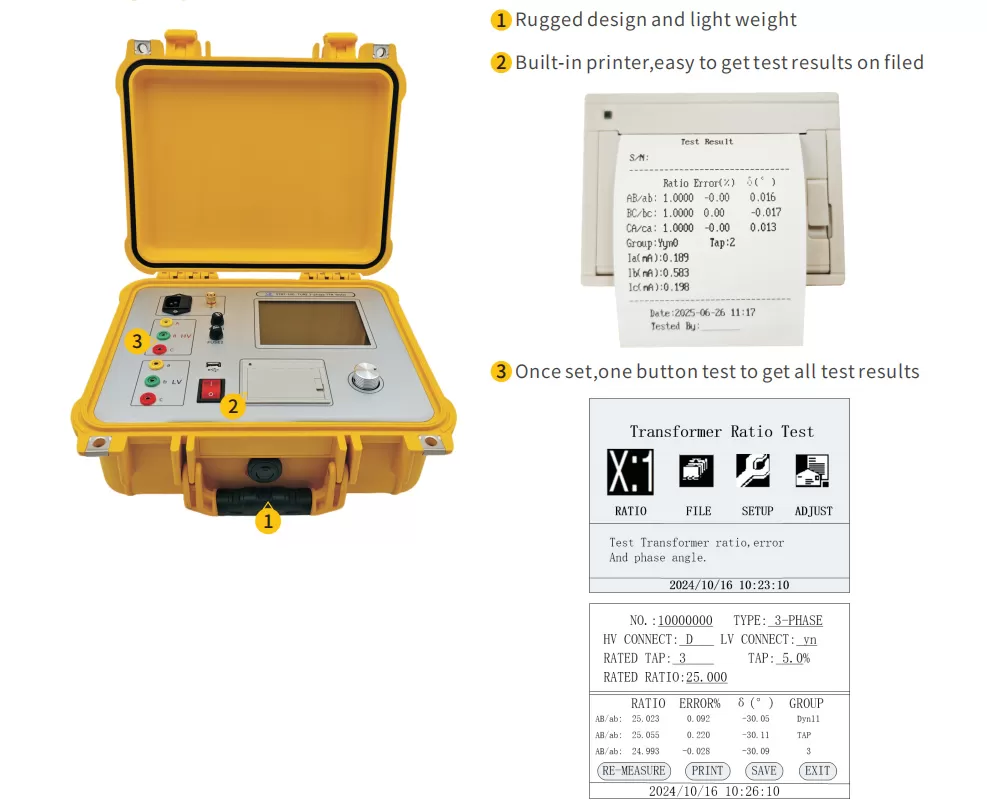

Portable to carry
Built in printer
Battery powered (optional)
Displays % error vs. name plate value

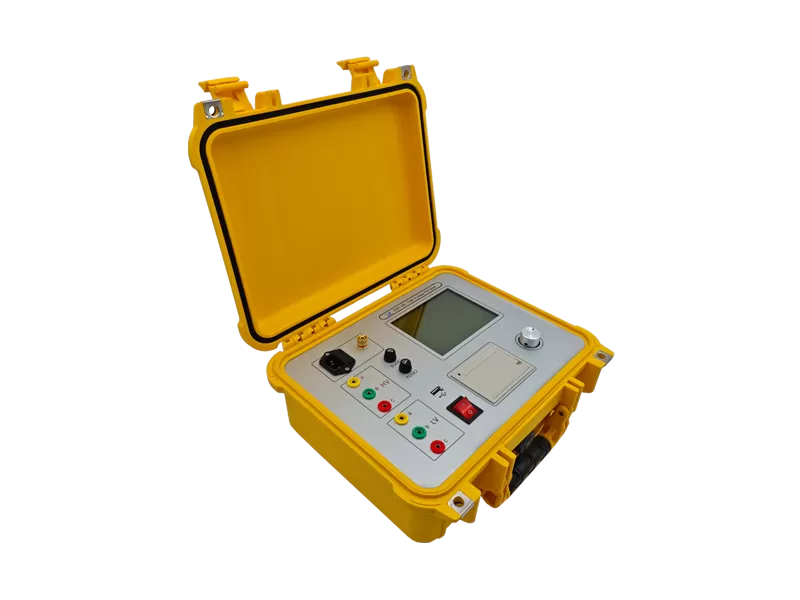

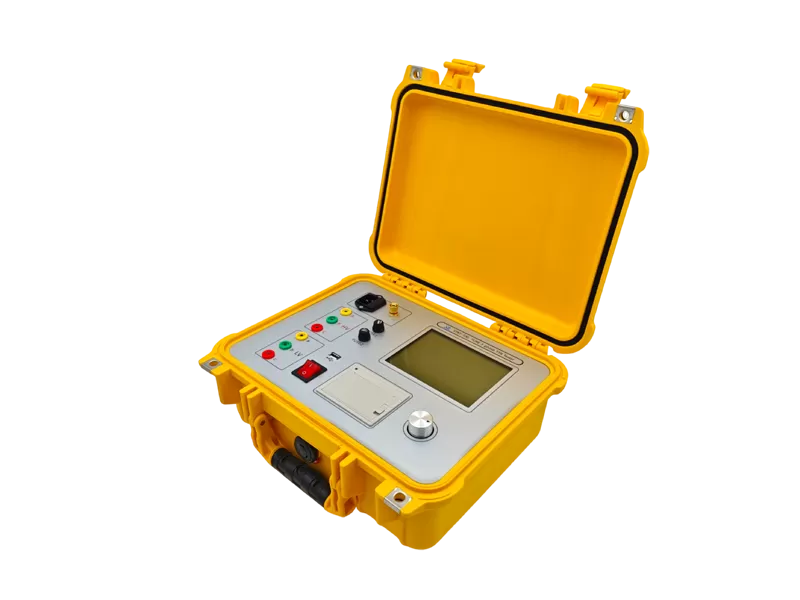

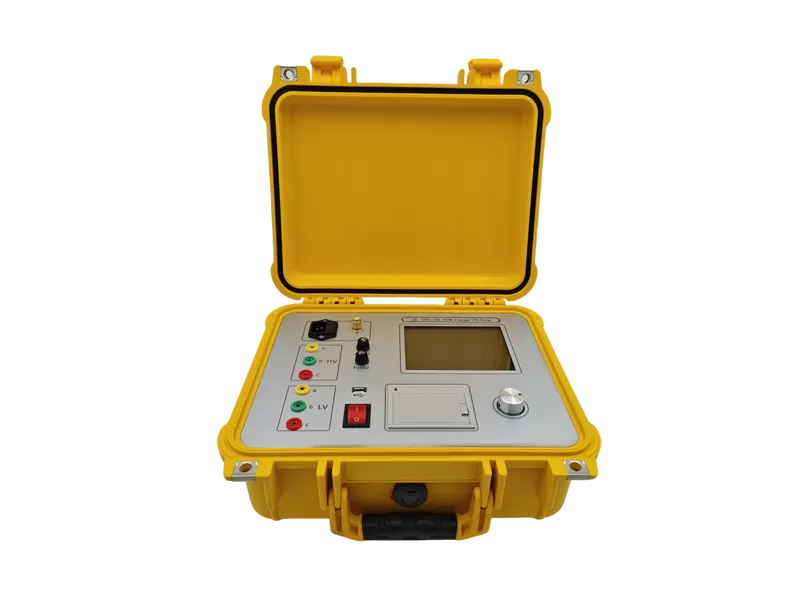

The STRT-100 is designed to test all power, instrument (CTs and PTs), and distribution transformers without the need of traditional high voltage excitation. With true three phase output voltage , testing is up to five times faster than previous phase-by-phase switching single instruments, easier to test phase shift measure ment, vector recognition, phase angle deviation, excitation current(Optional), winding balance.
Turns ratio test
Phase shift measurement
Vector recognition
Phase angle deviation
Excitation current
Winding balance
| Range | 0.5～10000 |
| Accuracy | ±0.1%rdg(≤1000) |
| ±0.2%rdg(1001-2000) | |
| ±0.3%rdg(2001-4000) | |
| ±0.5%rdg(4001-10000) | |
| Vector Recognition | 1-12 |
| Transformer Phase Measurement | Range:0~360° Accuracy:±0.5° |
| Excitation current Measurement(Optional) | Range:0.1mA-2A Accuracy:±1%±0.1 mA |
| Power Supply | 160-240V AC,50/60 Hz Battery Powered(Optional) |
| Environmental Conditions | Operating temperature:-10℃~50℃ Humidity:≤90% |
| Net Size | 350×290×150mm |
| Net Weight | 4.9kg(without measuring cables) |
