Easy to use
Integrated design
Lightweight and portable
Manual and PC remote control
The internal modular design of the instrument can independently complete the testing and debugging of devices and components in the professional fields of relay protection, excitation, metering, wave recording, etc.

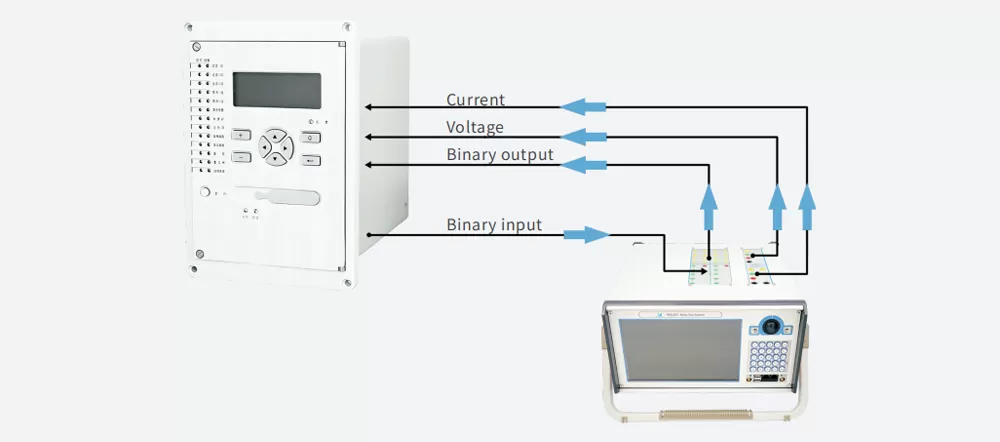

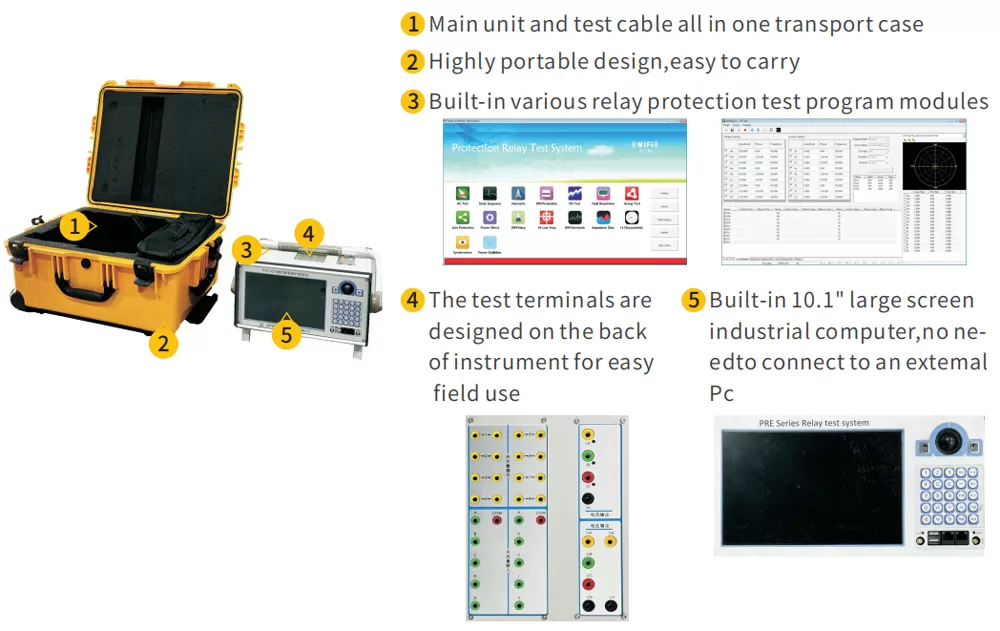

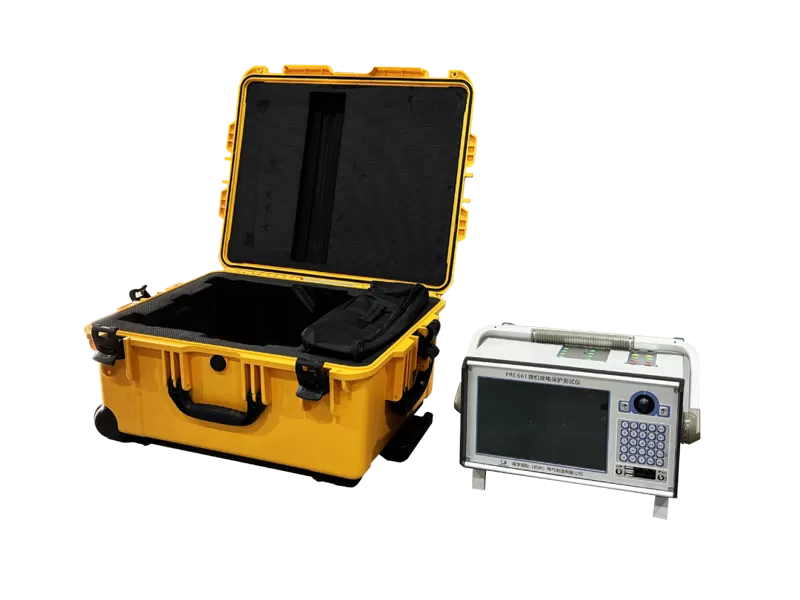

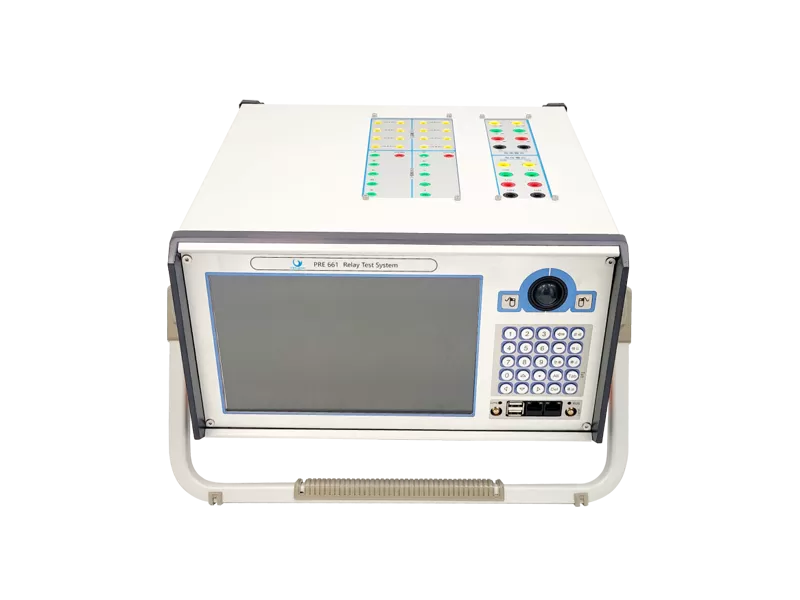

High performance Industrial control computer is adopted as the controlling computer, through which you can run the windows operating system directly. 10.1"TFT true color LCD display, tracking ball and optimized keyboard are allocated on the faceplate of this tester, which can be used without the external mouse and keyboard. USB interface, 10-100M net mouth and serial communication interface are located on the back plate of this tester, through which you can access data, communicate data and upgrade software conveniently.
High-speed digital controlling processor is adopted as the output core of the tester. 32 bit double precision arithmetic is employed in the software, through which arbitrary high-accuracy waveforms of each phase can be produced. Since integrative structure is adopted,the structure of the tester is layed compactly.The distance of data transmission is short with tight structure, which overcome the problem of fewer points of waveform output due to long data communicational line and narrow frequency band when using the test controller controlled directly by PC.

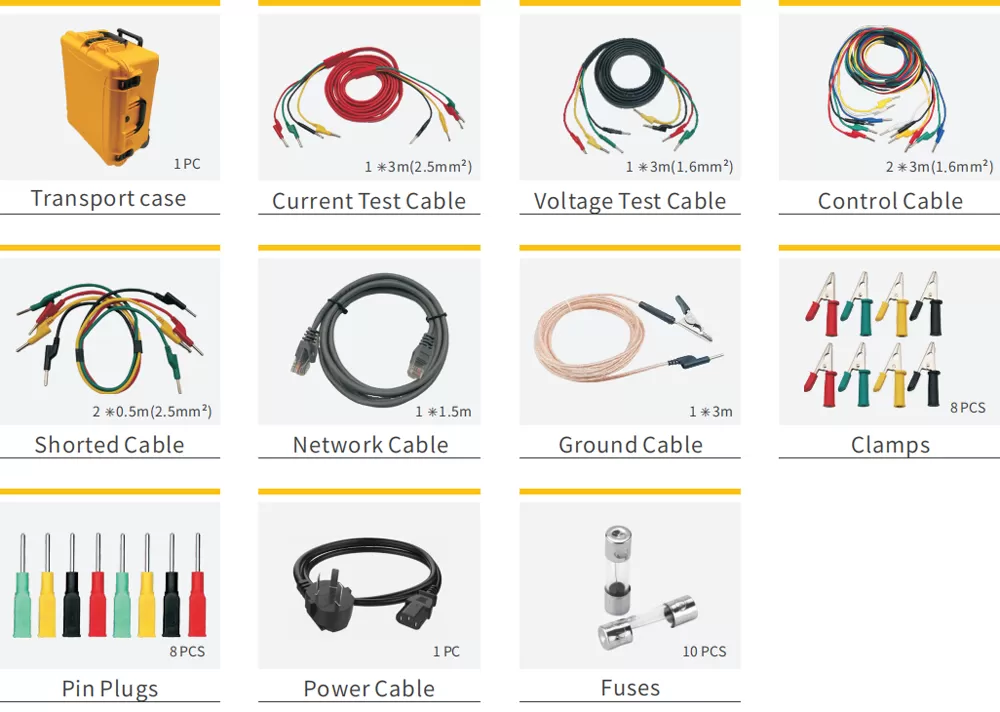

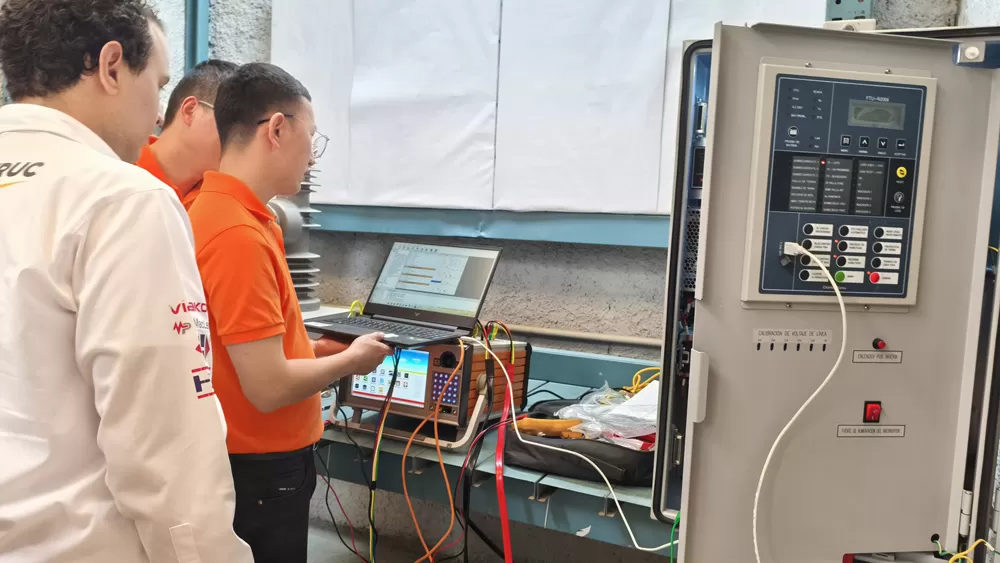

Commissioning and maintenance of distributed and generator power Substation
Protection relays ▶ Electromechanical relays ▶ Static relays ▶ Numerical relays
| Output range (effective value) | 4-phase AC(L-N)4×0~120V 1-phase AC(L-L) 1×0~240V DC(L-N) 4×0~±160V DC(L-L) 1×0~±320V | |
| Power | AC(L-N) 80VA AC(L-L) 100VA DC(L-N) 70VA DC(L-L) 140VA | |
| Accuracy | AC output DC output | ≤0.1% ≤0.2% |
| Output time | Continuous | output |
| Resolution | 10mV | |
| Output range (effective value) | 3-phase AC(L-N) 3×0~30A 1-phase AC(6L-L) 1×0~180A 1-phase ACL-L) 1×0~30A DC(L-N) 3×0~±10A DC(3L-N) 1×0~±30A | |
| Power | AC(L-N) 450VA DC(L-N) 200VA | |
| Accuracy | AC output ≤0.1% DC output ≤0.2% | |
| Output time | 0~10A continuous 10~20A 30s 20~30A 10s 30A 5s | |
| Resolution | 1mA | |
| Frequency | Range 0~1200Hz Resolution 0.001Hz | |
| Phase | Angle range -360°~360° Resolution 0.1° | |
| Timemeasur-ement | Range 0.1ms~9999s Resolution 0.1ms | |
| Number | 10(each fully isolated) |
| Modes | Potential-free or potential-sensing (automaticrecognition) |
| Max.measuri- ng time | Infinite |
| Number | 8 |
| Type | 4(1-4)relay and4(5-8) quick outputcontacts |
| Breaking capacity | Vmax:250VAC/Imax:0.5A Vmax:250VdC/Imax:0.3A |
| Voltage | 110V/220V(Switch between) |
| Power | >100W |
| Nominal input voltage | 175~260VAC |
| Nominal frequency | 50/60Hz |
| PC connection | Ethernet,10M/100M |
| Ground Socket (earth) | 4mm banana socket |
| Net Size | 400mm×200mm×402mm |
| Net Weight | 20kg |
