Intelligent analytics
Ultrasonic monitoring
128 digital microphones
Support PRPD function

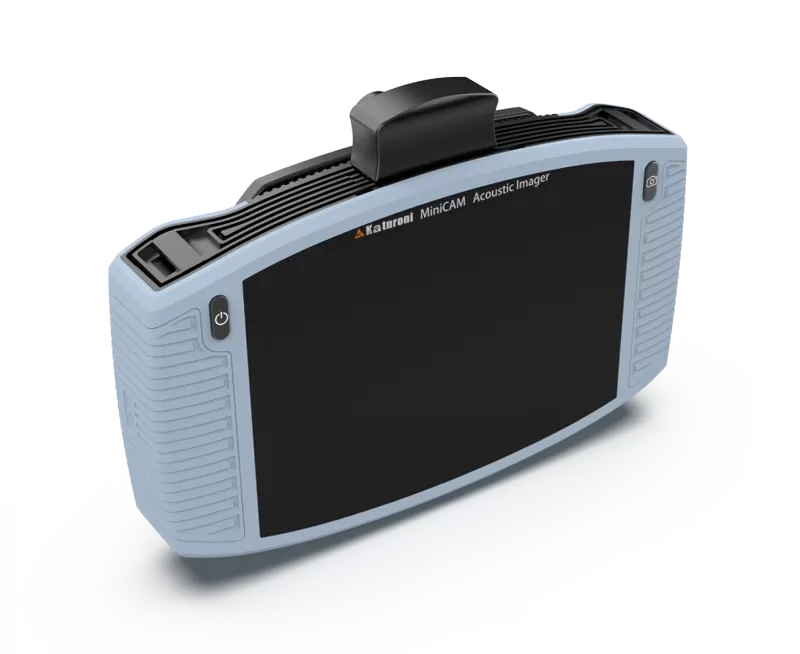

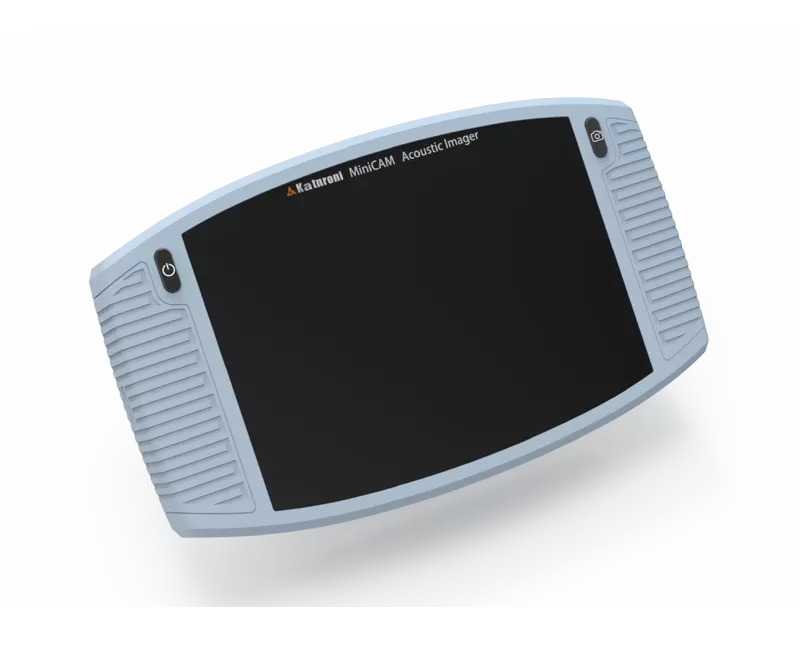

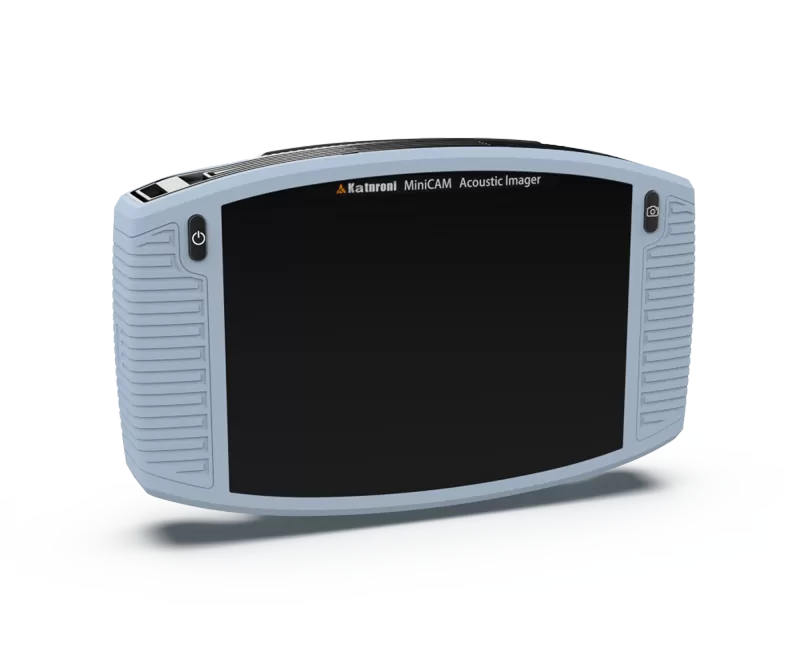

This rugged, versatile tool can help you quickly and easily identify a variety of undesirable industrial conditions, like electric faults, gas leaks. With pinpoint accuracy the Mini CAM allows you to instantly see audible and ultrasonic noises that are hard to detect, With 128 Digital Microphones, it will help you clearly see what you've been missing.

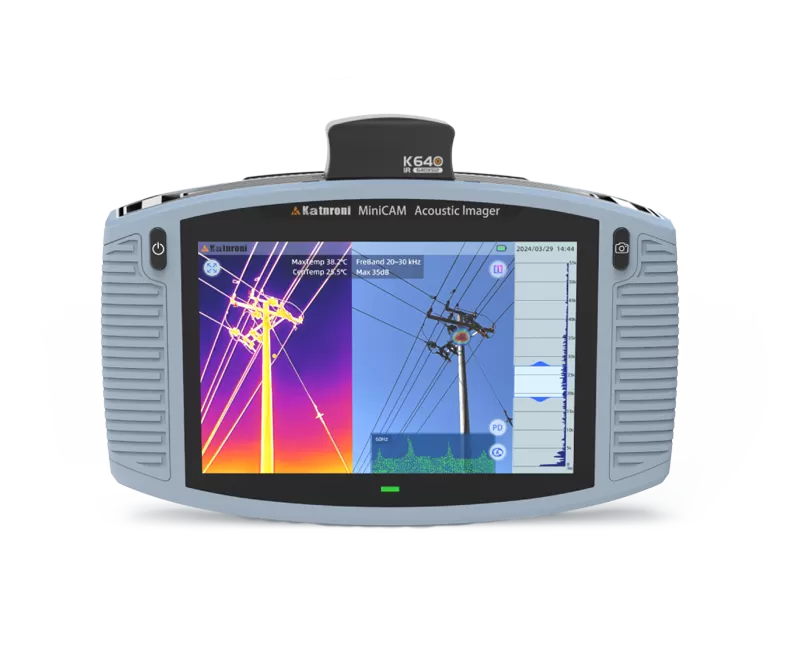

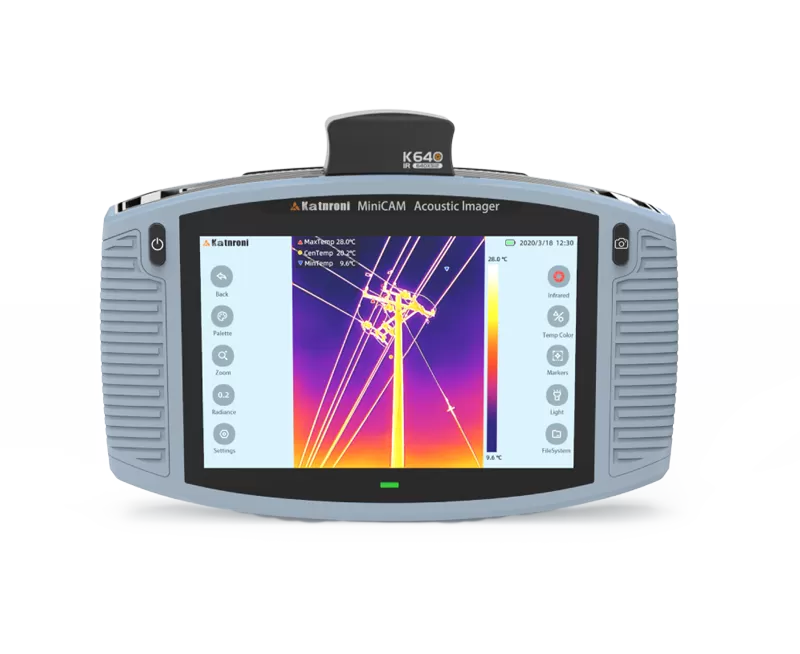

By adding an optional thermal camera part, the Mini CAM can change functions between acoustic imaging and thermal imaging, making diagnosis more comprehensive and efficient.

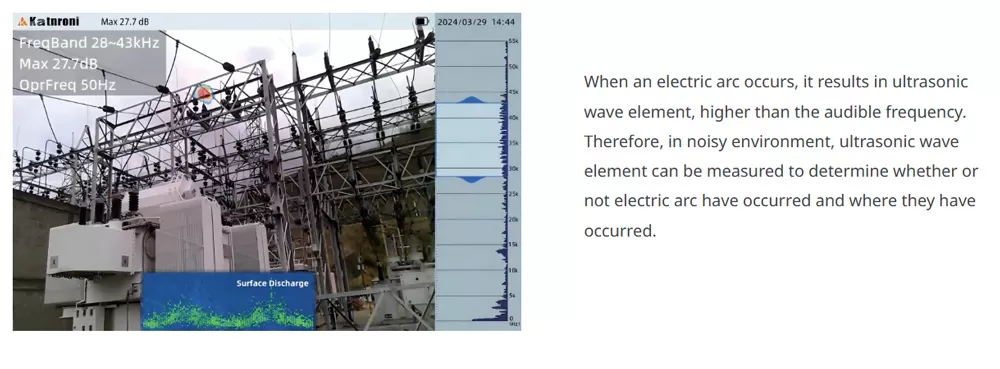

1. Visualize what you can hear and what you can't
2. Make your online diagnosis more efficient
| Technical data of acoustic imager | |||
| Sensor(microphone) | 128 | Storage capacity | 64GB, Max 128GB |
| Effective frequency range | 2-55kHz (support extensions) | Digital export | USB 3.0 Type-C |
| Microphone sensitivity | -25 dBFS | Display | 7 inch (1280x800 resolution) |
| Signal-To-Noise ratio | 64.3 dB(A) | Battery operation time | 5 hours |
| Camera frame speed | 30 FPS | Operating temperature | -20℃ ~ 50℃ |
| Detection distance | 0.3m-200m (due to real test situation) | Supported languages | Chinese, English, Spanish, French, Russian, Portuguese |
| Image format | JPG | Size | 246mm*150mm*45mm |
| Video format | MP4 | Weight | 1.25kg |
Technical data of optional thermal camera | |
Optical zoom | Adjustable |
Resolution | 640*512 |
Thermal sensitivity NETD | 25mK@30℃ |
Temperature measurement range | -20℃ to 650℃ |
Temperature measurement accuracy | ±2℃ or ±2% |
Emissivity | 0.1-1.00 adjustable, 0.01 step |

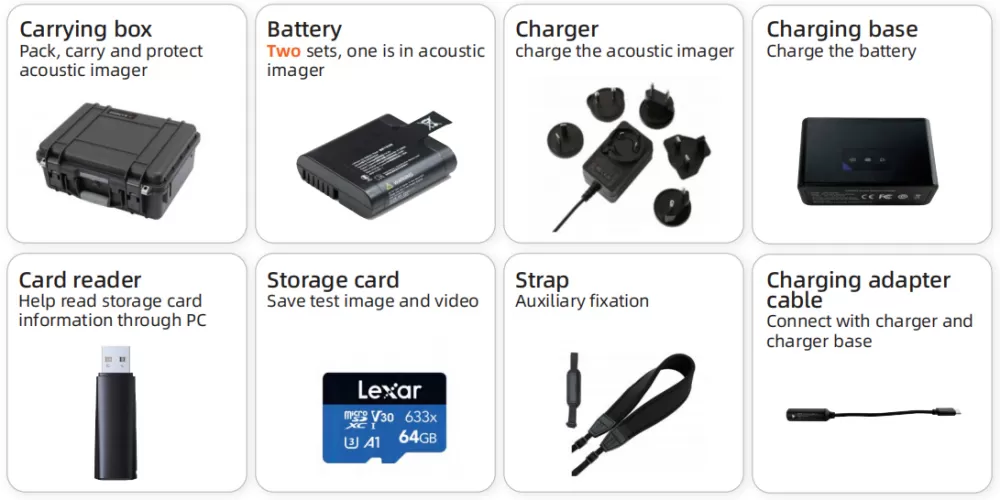

Standard accessories
Optional accessories
