IR resolution 640*512
Type-C port, quick adaptation
Different color palettes & image modes
Battery-free，little power less than 0.53W

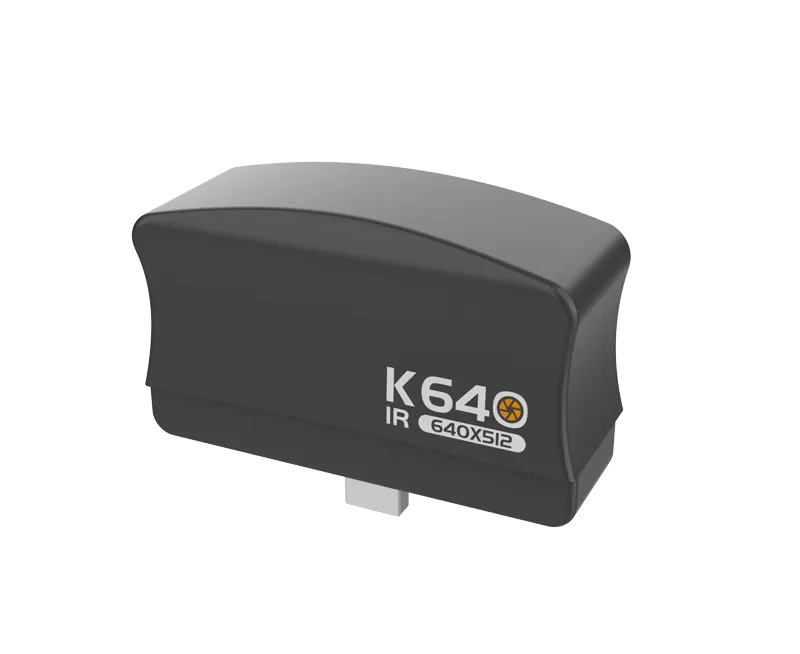

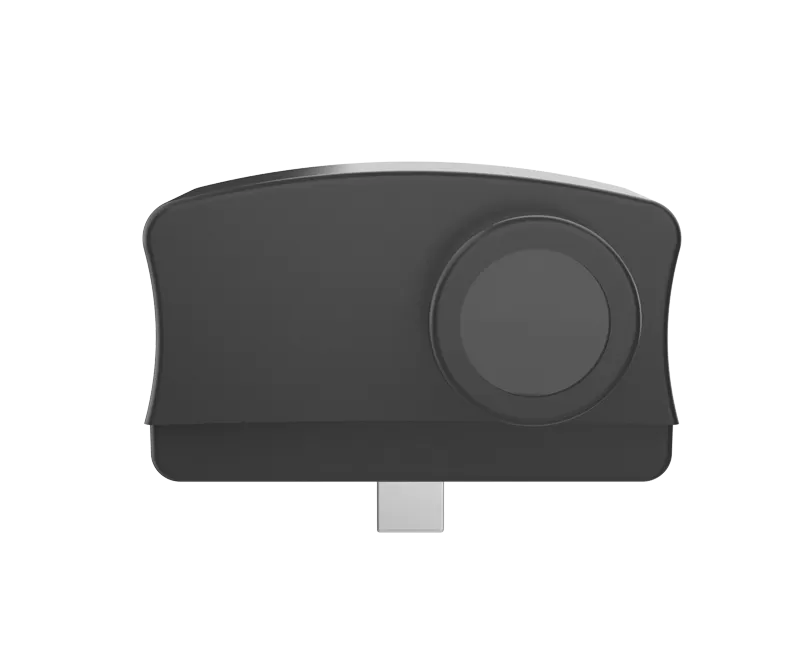

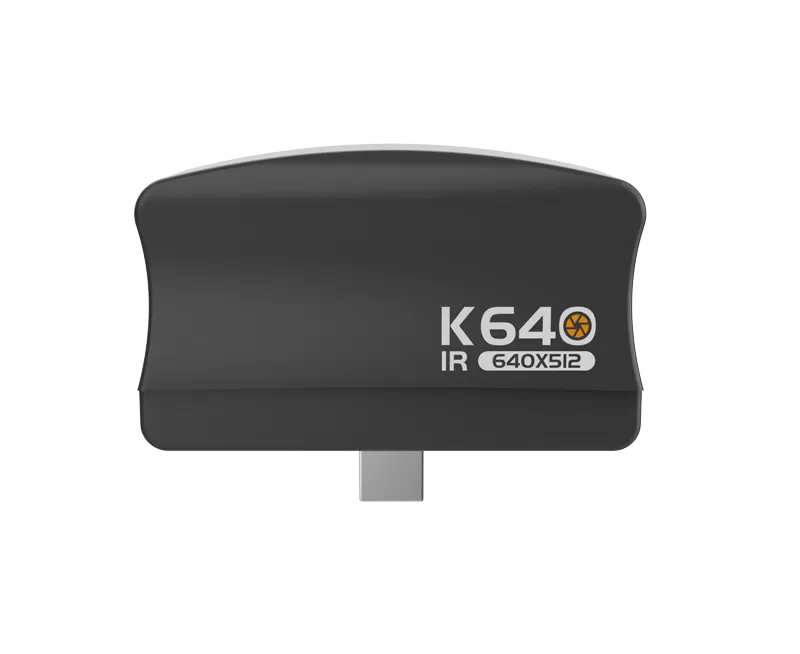

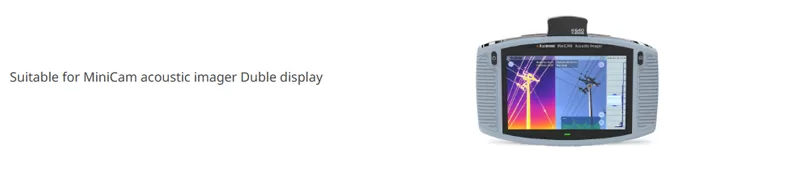

The K640 thermal camera module is a new generation of high-performance mobile phone or acoustic imager plug-in. The module features a built-in 640*512 resolution infrared detector, providing professional-grade thermal imaging capabilities for accurate detection of surface temperature distribution on target objects.
The product features a compact and lightweight design with low power consumption, and can achieve real-time temperature measurement, imaging, photography, video recording, and data analysis through a dedicated mobile app.
| IR Resolution | 640*512 | Optical zoom | Adjustable |
| Spectral Range | 8~14μm | Display | Phone screen/MiniCam |
| NETD | 25mK @30℃ | Video | Support |
| Temperature Range | -25℃ to 650℃ | Markers | Points, lines, rectangle, circle |
| Repeatability | ±2℃or±2% | Power | ＜0.53W |
| Fcous | Manual | Port | Type-C |
| Emissivity | 0.1-1.00 adjustable, 0.01 step | APP function | Image, video, analyse, report |
| Operating temperature | -20°C to 50°C | ||
| Size | 55mm*29mm*30mm | IP rating | IP 50 |
