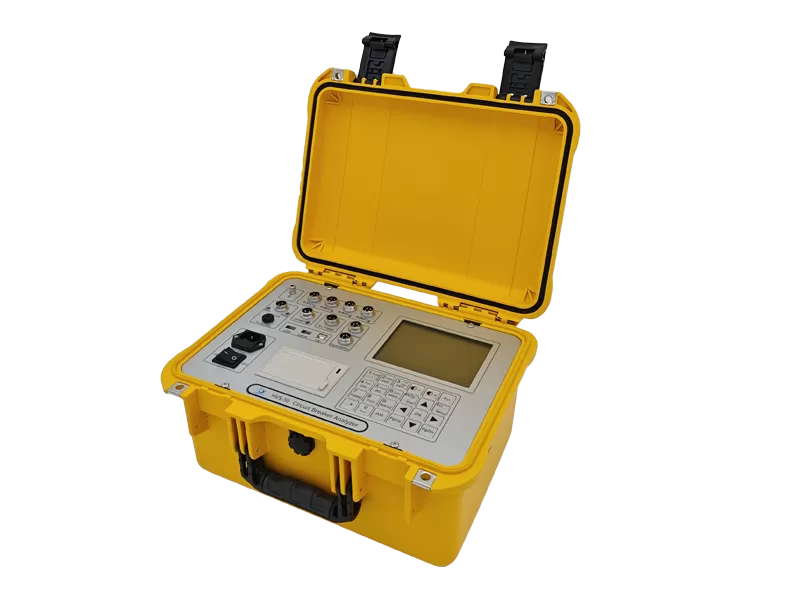

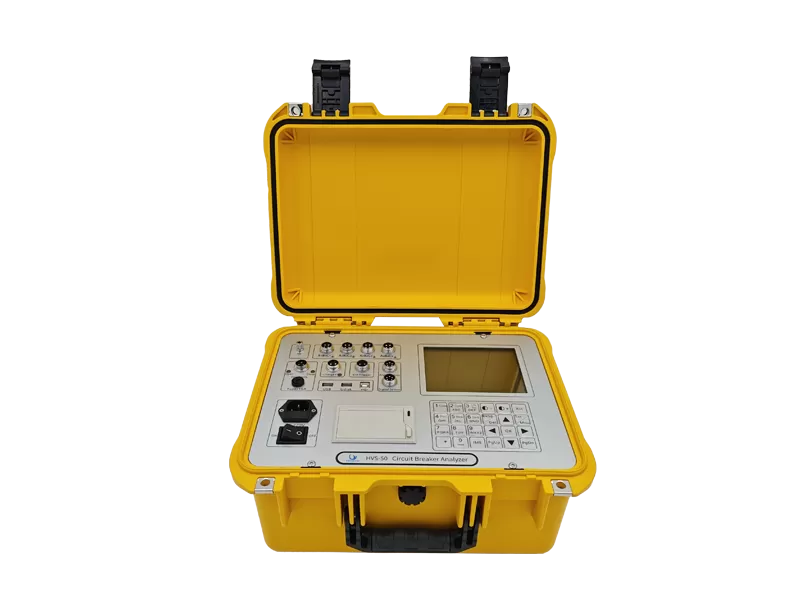

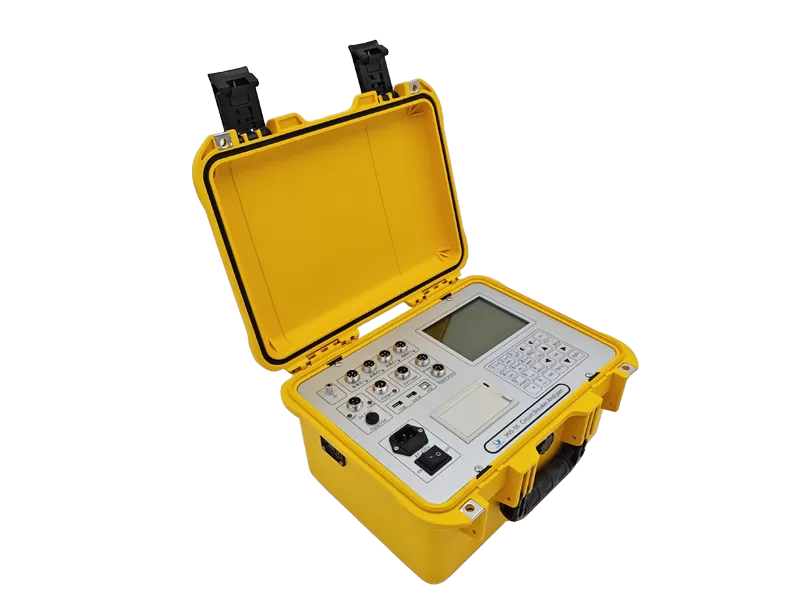

Timing and travel analyzer
Coil and motor supply of 2.4 kW
Support PIR(Pre-insertion resistor) function

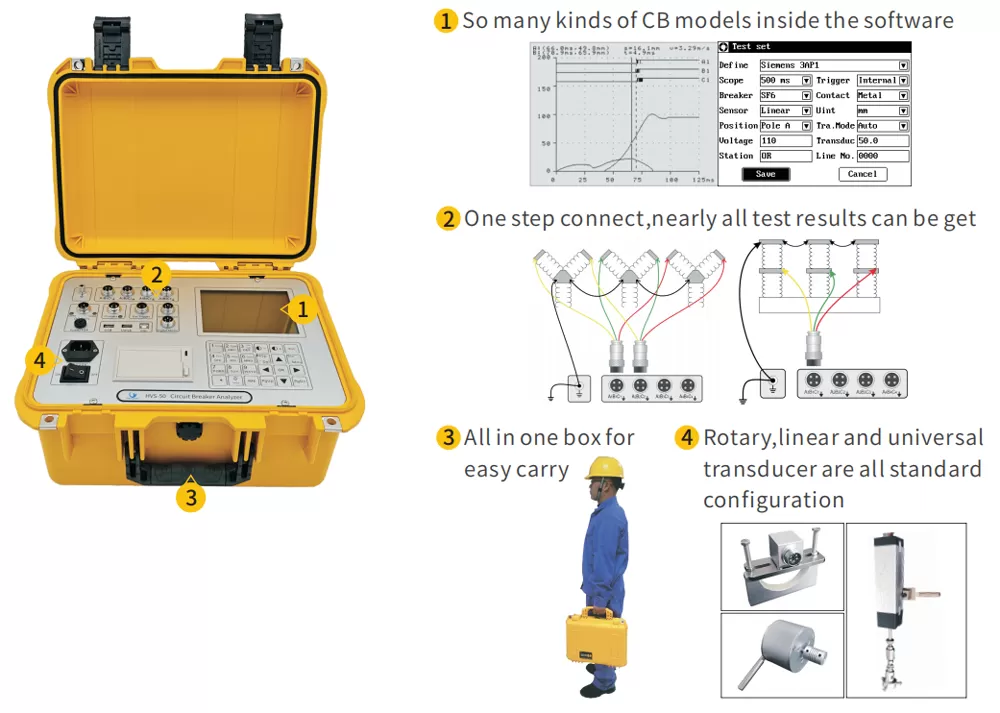

So many kinds of CB models inside the software

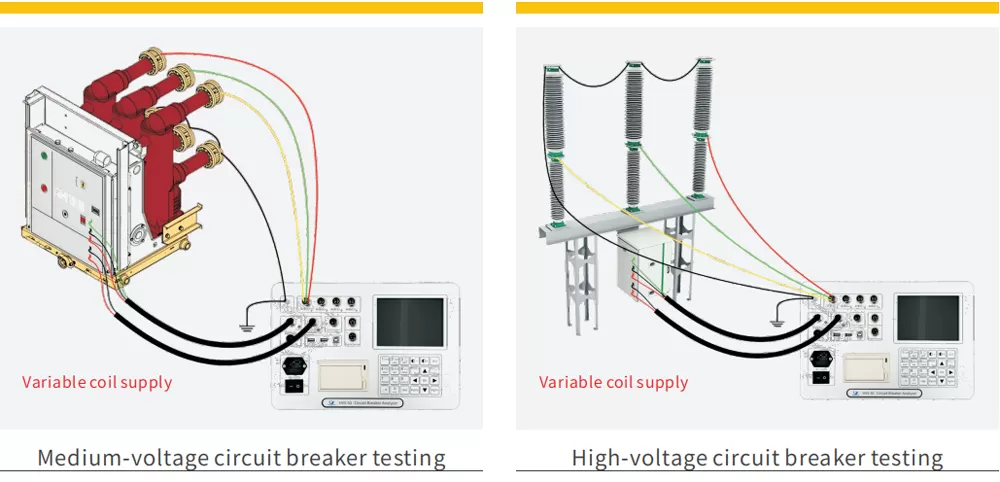

One step connect, nearly all test results can be get

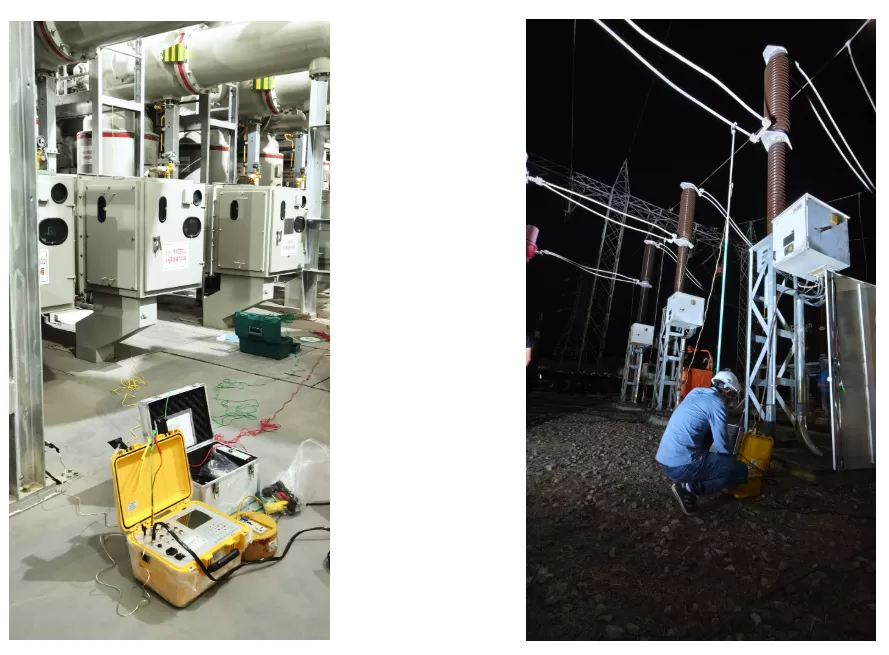

Easy to carry out complete tests on medium and high voltage circuit breakers. Analysis can be performed quickly, easily, automatically with only once connect to circuit breakers.
Timing measurements
Motion and travel measurements
Vibration measurements
Coil current analysis of close and open coils
Minimum pickup voltage test for close and open

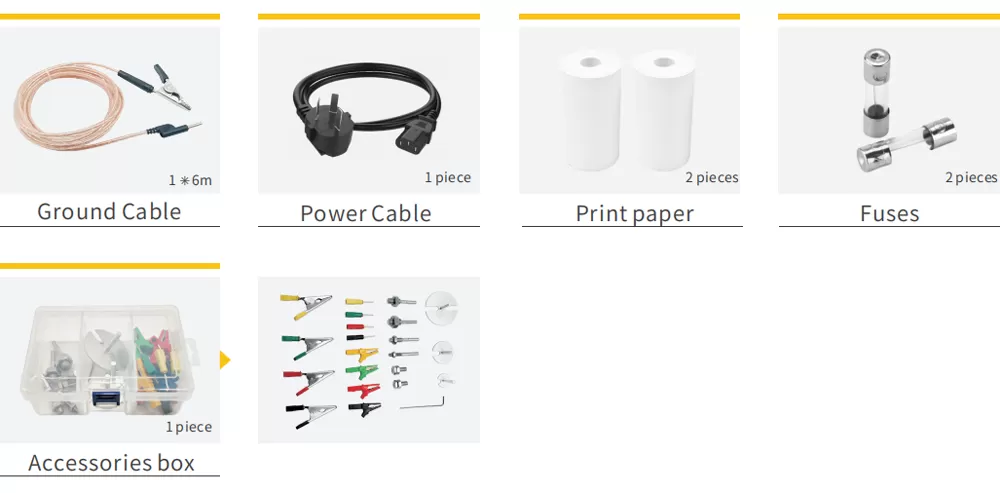

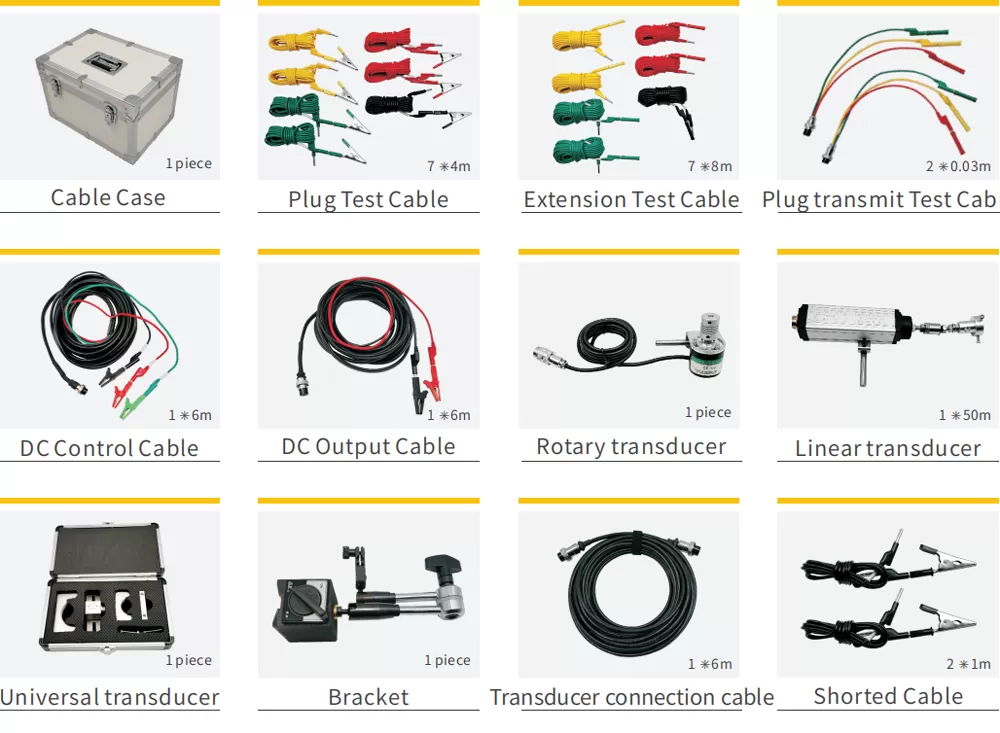

| Time Fracture | 12 metal contacts,25V,curentlimit 50mA | |
| Motion Sensor | Rotary,Linearand Universaltransducer | |
| Safety Performance | Insulation resistance:>2M2,Leakage current:<3.5mA Dielectric strength:AC 1500V50Hz,1min | |
| Time Test | Range | 0-16s |
| Accuracy | 土(0.001%012words) | |
| Resolution | 0.1ms | |
| Travel Test | Range | 0-800mm |
| Accuracy | 0.5%±0.1mm | |
| Resolution | 0.1mm | |
| Speed Test | Range | 0.01-20.00m/s |
| Accuracy | 1% | |
| Resolution | 0.01m/s | |
| DC PowerSupply | Adjustment range | 0-270V |
| Maxinstantaneous current | 20A | |
| Accuracy | 土(0.01+1 word) | |
| Lcad change rate | s0.01 | |
| Store and Print | Built-in high-speed thermal printing,fast and silent, data can be stored in realtime | |
| Input Power | 200~240VAC,50/60Hz | |
| Environmental Conditions | Operating temperature:-10℃~50℃ Humidity:≤90% | |
| Net Size | 380×280×200mm | |
| Net Weight | 7kg(withoutmeasuring cables) | |
