Battery operated
Lightweight – 1.7 kg
Handheld design, easy to carry
Simple, one-button operation

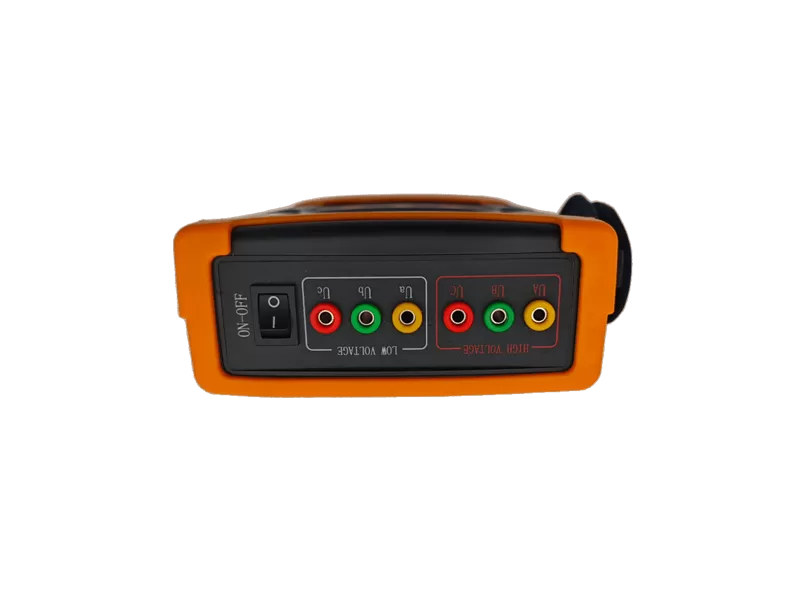

Rugged metal connectors on leads and unit

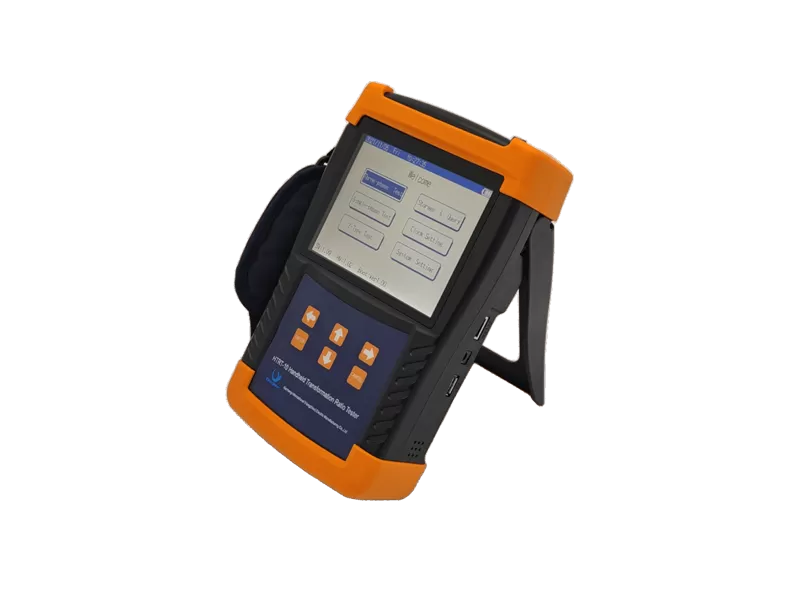

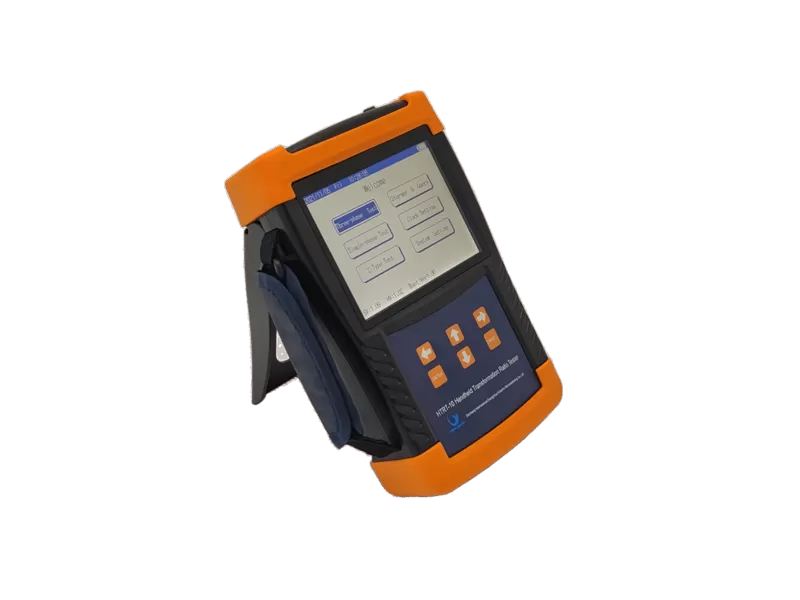

The HTRT-10 is an automatic hand-held battery operated transformer turns ratio test set, allows the user to operate the test set while holding it in one hand. It effectively eliminates the user from having to kneel or bend down to operate the instrument and speeds up testing time, with a weight only 1.7 kg.

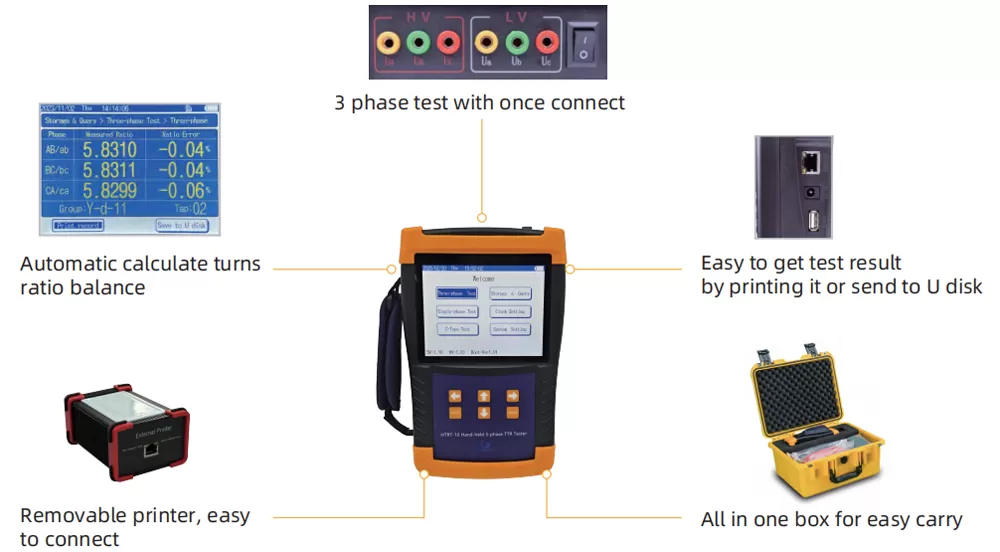

Turns ratio test
Phase shift measurement
Vector recognition
Winding balance

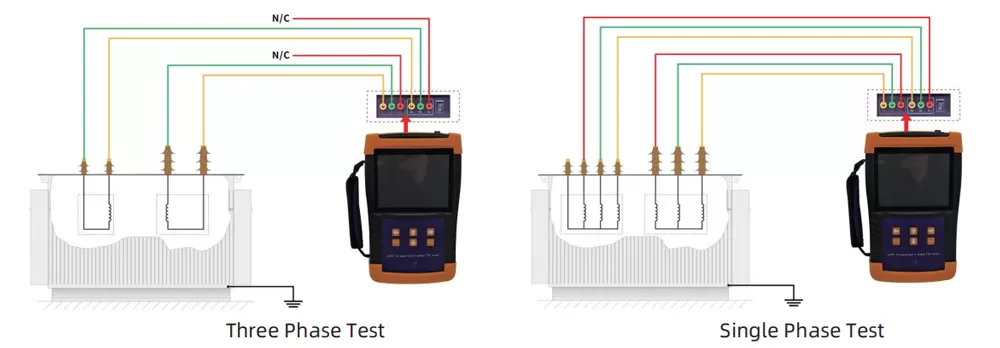

WIRING DIAGRAMS
| Range | 0.9～10000 |
| Accuracy | ±(Reading×0.1%+2 words)(≤500) |
| ±(Reading×0.2%+2 words)(>500≤3000) | |
| ±(Reading×0.3%+2 words)(>3000) | |
| Resolution Ration | 0.9～9.9999(0.0001) |
| 10～99.999(0.001) | |
| 100～999.99(0.01) | |
| 1000～9999.9(0.1) | |
| 10000 and above(1) | |
| Power Supply | Built-in battery or external charger,charger conditions of use, input 100-240 VAC,50/60 Hz |
| Charging Time | About 2 hr |
| Temperature | -10℃~50℃ |
| Relative Humidity | ≤90%,No dew |
| Net Size | 246×156×62 mm |
| Net Weight | 1.7 kg |
