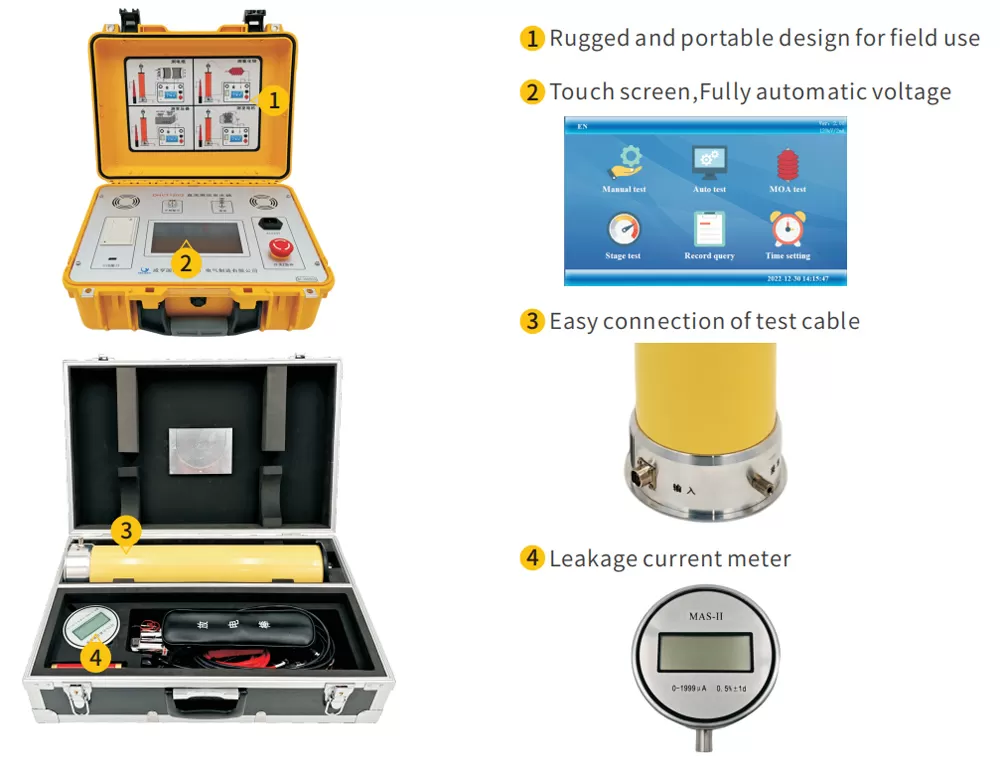

Rugged design for field use
Measures leakage current
Rugged and portable construction
No internal leakage at full load

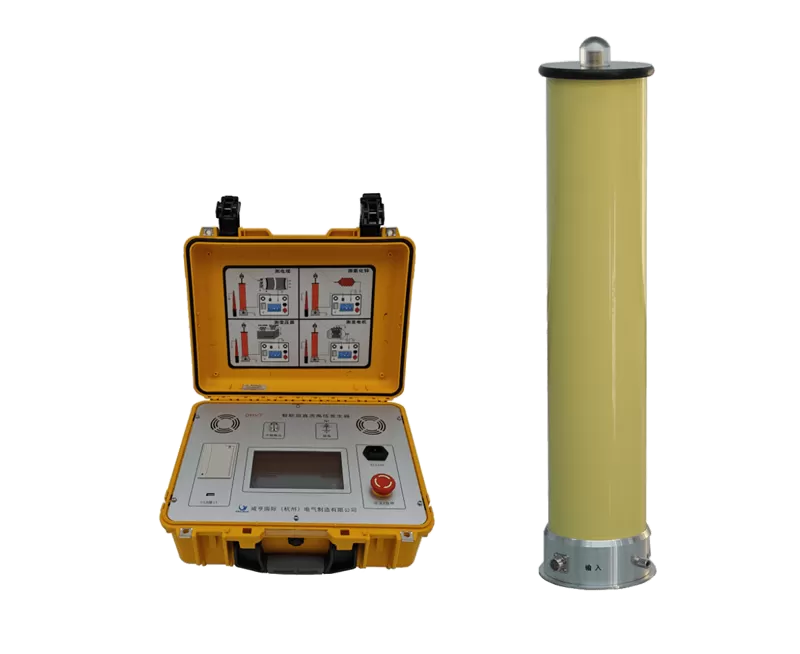

Intelligent DC Hipot tester, suitable for electric power companies and enterprise power department to conduct DC withstand voltage test and DC leakage current test on zinc oxide arresters, power cables, generators, transformers, circuit breakers, etc. which is a necessary test instrument for high voltage tests.
With AIPWM technology, the inaccurate linearity of PWM technology is adjusted, and the instrument accuracy is greatly improved. And using AI technology set overvoltage protection and overcurrent protection replaced the digital dial switch can only set the voltage value, can not set the current value and voltage drift problem, increased the AI automatic zinc oxide arrester measurement, automatic voltage test function, and can directly print test report and save experiment report, keep the manual way.
| Ripple Coefficient | ≤0.5% |
| Voltage Adjustment Accuracy | ≤0.1% |
| Voltage Stability | ≤1% |
| Voltage And Current Measurement | 4.1/2 Digital display |
| Voltage Measurement Accuracy | 1%+1word |
| Current Measurement Accuracy | 0.5%+1word |
| Overvoltage Protection | Dialing setting,errort1% |
| Working Type | Intermittent use,rated load for 30 minutes |
| Input Power | 200~240VAC,50/60Hz |
| Environmental Conditions | Operating temperature:-10℃-50℃ Humidity:≤90% |
| Model | Output voltage(kV) | Output current(mA) | Output power(W) | Control Case weight (kg) | Voltage Generator weight(kg) | Generator height(mm) |
| DHVT 60/2 | 60 | 2 | 120 | 9.3 | 2.85 | 440 |
| DHVT 60/5 | 60 | 5 | 300 | |||
| DHVT 60/10 | 60 | 10 | 600 | 9.3 | 3.85 | 440 |
| DHVT 60/20 | 60 | 20 | 1200 | 9.3 | 4.35 | 440 |
| DHVT 120/2 | 120 | 2 | 240 | 9.3 | 2.85 | 540 |
| DHVT120/5 | 120 | 5 | 600 | |||
| DHVT 200/2 | 200 | 2 | 400 | 9.3 | 10.3 | 970 |
| DHVT 200/5 | 200 | 5 | 1000 |
★The specifications shown above are only common specifications, output voltage and output current can be customized according to requirements.

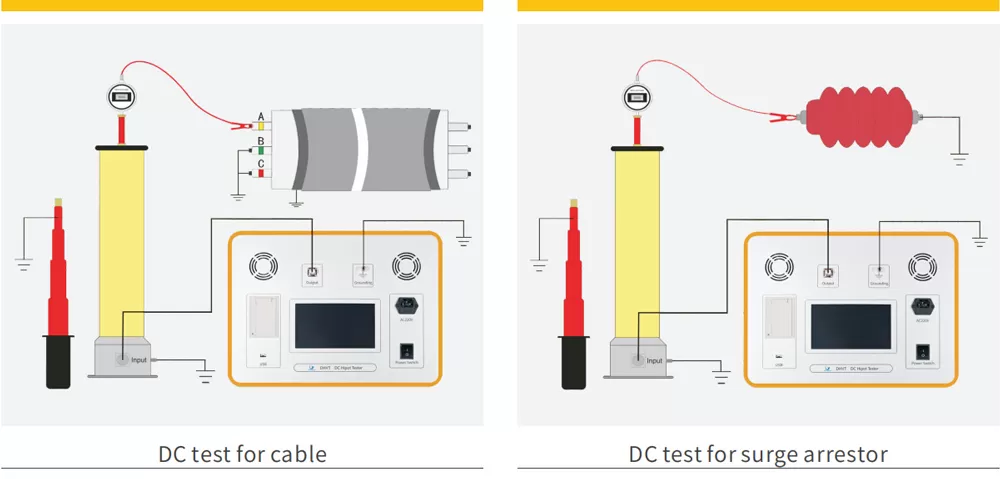

Cables
Switch gear
Arresters

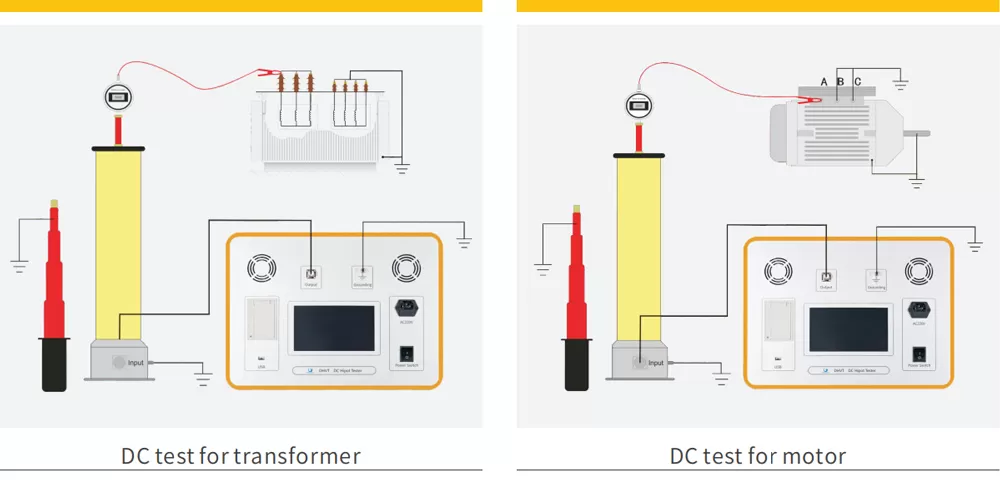

Motors and generators
Transformers
Commissioning and maintenance of distributed and generator power Substation
