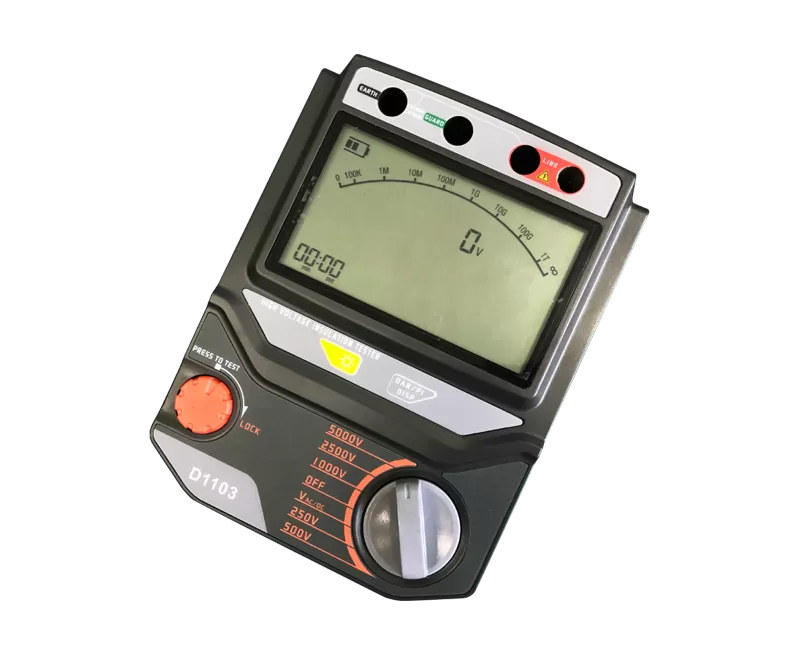

Large screen display, powered by lithium battery

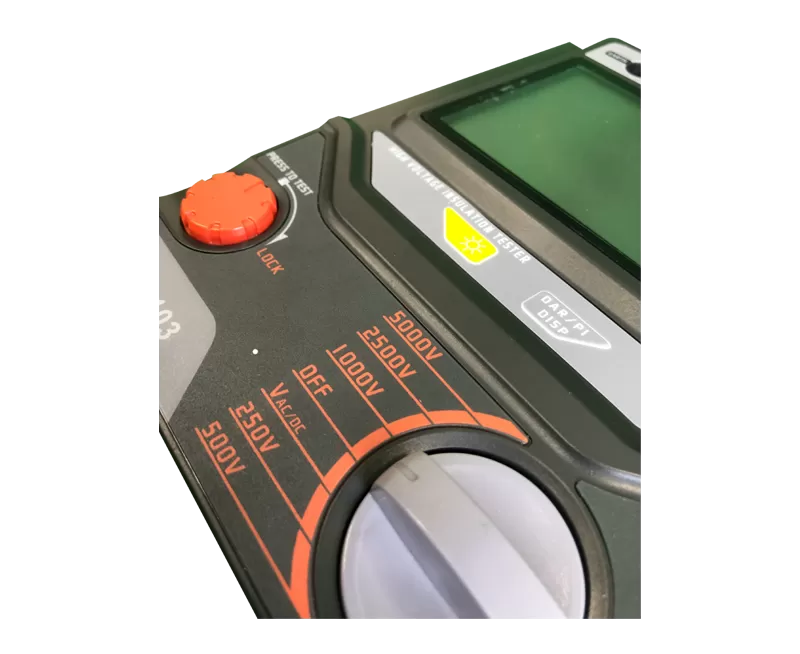

Five channel output voltage (up to 5000V)

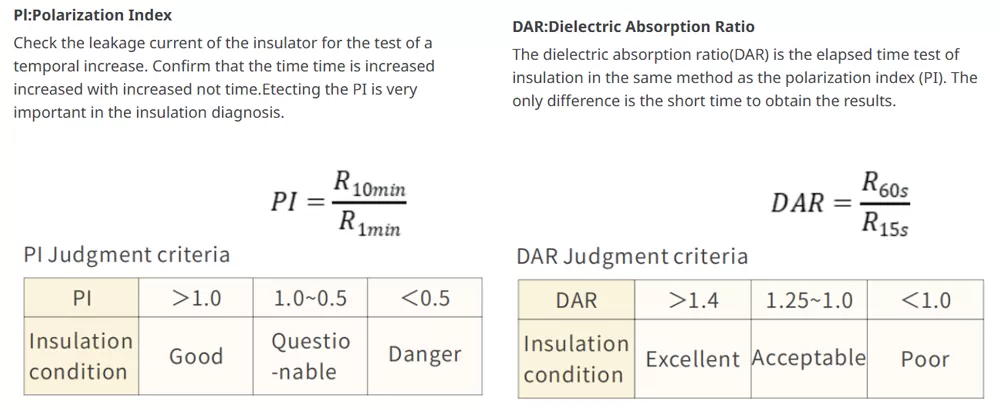

Fully automatic test, PI, DAR test
Weight only 1.4kg

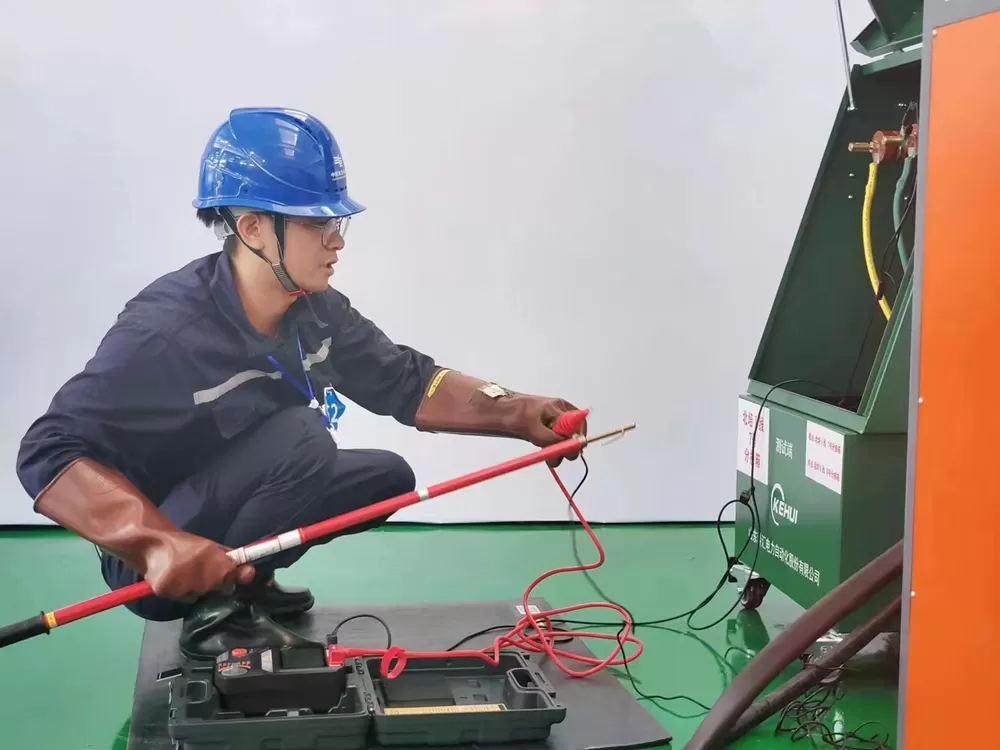

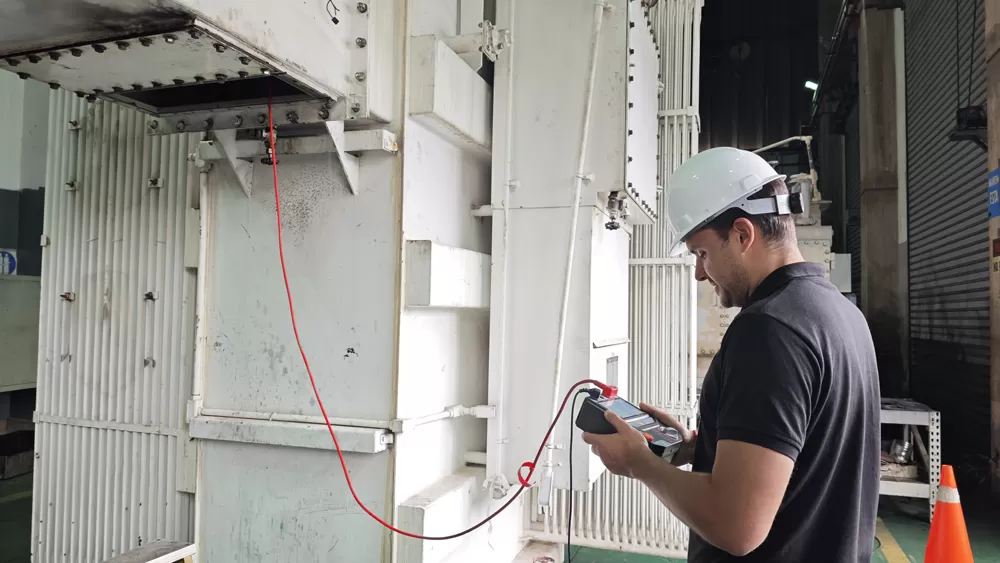

Suitable for electric power companies and enterprise power department to conduct insulation test on primary equipment such as transformers, breakers, cables and so on, which is a necessary test instrument for high voltage tests.
Cables
Switch gear
Arresters
Motors and generator
Transformers
Commissioning and maintenance of distributed and generator power Substation
| Test voltage | 250V、500V、1000V、2500V、5000V |
| Test voltage accuracy | +20%,-10% |
| Measuring range | 250V:0.25～600MΩ |
| 500V:0.5～1.2GΩ | |
| 1000V:1.0～2.2GΩ | |
| 2500V:2.5～120GΩ | |
| 5000V:5.0～500GΩ | |
| Insulation resistance accuracy | 0.25MΩ~80GΩ:±5%rdg±3dgt 80～500GQ:±20%rdg |
| Short circuit current | 1.5mA±0.5mA |
| Voltage measurement range | DC:±30~±600V AC:30～600V(50/60Hz) |
| Voltage measurement accuracy | ±2%rdg±3dgt |
| Voltage measurement resolution | DC-1V,AC-5V |
| Insulation resistance | ≥1000MΩ/DC 1000V(between circuit and outer case) |
| Battery capacity | 5200mAh |
| Size | 150×202×70mm |
| Weight | 1.4kg(including battery) |
